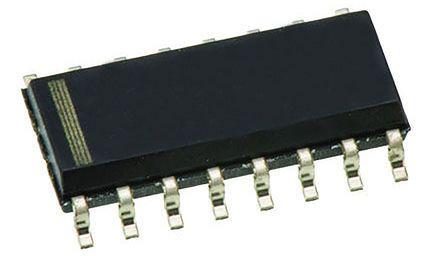

ON Semiconductor MC74HC595ADG 8-stage Shift Register, Serial to Serial/Parallel, 2 → 6 V, 16-Pin SOIC

MC74HC595ADG ON Semiconductor 8-stage Shift Register, Serial to Serial/Parallel, 2 → 6 V, 16-Pin SOIC
MC74HC595ADG ON Semiconductor 8-stage Shift Register, Serial to Serial/Parallel, 2 → 6 V, 16-Pin SOIC
ON Semiconductor

Product Information

Reset Type:
Asynchronous
Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Direction Type:
Uni-Directional
Minimum Operating Supply Voltage:
2 V
Logic Function:
Shift Register
Operation Mode:
Serial to Serial/Parallel
Logic Family:
HC
Height:
1.5mm
Width:
4mm
Length:
10mm
Package Type:
SOIC
Number of Stages:
8
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
6 V
Triggering Type:
Positive Edge
Maximum Operating Temperature:
+125 °C
Pin Count:
16
Number of Elements:
1
RoHs Compliant
Checking for live stock

This is 8-stage Shift Register Serial to Serial/Parallel 2 → 6 V 16-Pin SOIC manufactured by ON Semiconductor. The manufacturer part number is MC74HC595ADG. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 10mm. Whereas, the minimum operating temperature of the product is -55 °c. It has a maximum operating temperature of +125 °c. It carries 1 elements.

pdf icon
MC74HC595A 8-Bit Serial-Input/Serial or Parallel-Output Shift Register with Latched 3-State Outputs Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
