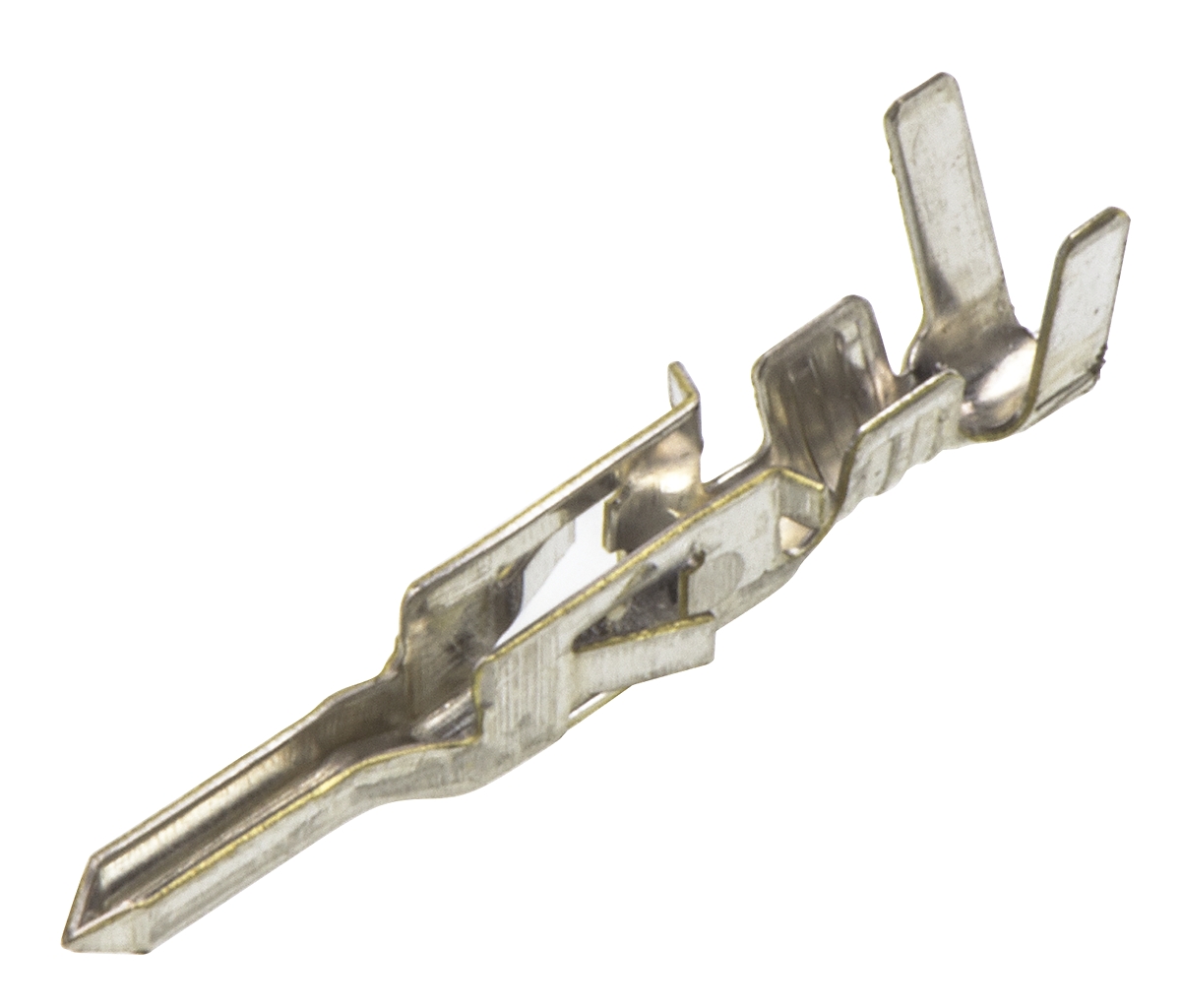

Molex MINI-FIT, 5558 Series Number Crimp Terminal, Male, 24AWG to 18AWG, Tin over Copper Plating

Enrgtech Part No: ET13967945
|
Manufacturer Part No:
39-00-0040
|
Manufacturer: Molex

(0)

Product Information

Minimum Operating Temperature:

-40°C

Maximum Current:

Maximum Contact Resistance:

10mΩ

Gender:

Male

Termination Method:

Compression, Crimp

Minimum Wire Size AWG:

24AWG

Contact Plating:

Tin

Series:

Mini-Fit

For Use With:

5559 Mini-Fit Jr. Plug Housings, 30068 Mini-Fit TPA Plug Housings, 42475 Mini-Fit BMI Plug Housings

Maximum Wire Size AWG:

18AWG

Contact Material:

Brass

Maximum Operating Temperature:

+80 °C, +105 °C

Checking for live stock

This is MINI-FIT 5558 Series Number Crimp Terminal Male 24AWG to 18AWG Tin over Copper Plating manufactured by Molex. The manufacturer part number is 39-00-0040. Whereas, the minimum operating temperature of the product is -40°c. In addition, male is the available "Gender" of the product. The product mini-fit, is a highly preferred choice for users. The product is made from sturdy brass materials. It has a maximum operating temperature of +80 °c, +105 °c. It has typical 5 weeks of manufacturer standard lead time. It features pin contact tin 18-24 awg crimp power. Moreover, the product has a wire gauge of 18-24 awg. The product mini-fit jr 5558, is a highly preferred choice for users. Furthermore, the product is galvanized with excellent tin contact finishing. In addition, cut tape (ct) is the available packaging type of the product. Pin/Socket Info: pin. It comes in power configuration. It also incorporates crimp contact terminals. The molex's product offers user-desired applications.

Drawing(Technical Reference)

Datasheet 39-00-0040(Technical Reference)

39-00-0040 RoHS Cert of Compliance(Environmental Information)

00390yyyyy Series 26/Feb/2015(PCN Assembly/Origin)

Multiple Devices Production 28/Jul/2016(PCN Assembly/Origin)

Multiple Devices 02/Nov/2015(PCN Assembly/Origin)

Multiple Devices Approved Supplier 22/may/2019(PCN Assembly/Origin)

5556-001 Prod Spec(Datasheets)

00390000yy Drawing(Datasheets)

212 (UK2011-EN PDF)(Catalog Page)

Mini-Fit Jr Test Summary(Other Related Documents)
