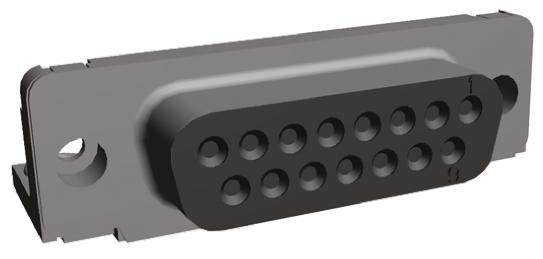

TE Connectivity AMPLIMITE HD-20 Series, 15 Way Right Angle Through Hole PCB D-sub Connector Socket, 7.06mm Pitch

5745782-4 TE Connectivity AMPLIMITE HD-20 Series, 15 Way Right Angle Through Hole PCB D-sub Connector Socket, 7.06mm Pitch
TE Connectivity

Product Information

Series:
Amplimite HD-20
Dimensions:
1.541 x 0.494 x 0.74in
Mounting Type:
Through Hole
Voltage Rating:
250.0 V
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
1.541in
Housing Material:
Thermoplastic
Width:
0.494in
Depth:
0.74in
Contact Plating:
Gold over Nickel
Pitch:
7.06mm
Mounting Hardware:
4-40 UNC, Threaded Insert
Number of Contacts:
15
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-55.0°C
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is AMPLIMITE HD-20 Series 15 Way Right Angle Through Hole PCB D-sub Connector Socket 7.06mm Pitch manufactured by TE Connectivity. The manufacturer part number is 5745782-4. The product amplimite hd-20, is a highly preferred choice for users. The given dimensions of the product include 1.541 x 0.494 x 0.74in. The product is available in through hole configuration. Moreover, the product has a nominal 250.0 v voltage rating. In addition, female is the available "Gender" of the product. Its accurate length is 1.541in. The product also features robust thermoplastic housing material. Furthermore, the product is 0.494in wide. The product comes in 0.74in depth. Moreover, the product is 7.06mm The product contains 15 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -55.0°c. The product is made from sturdy phosphor bronze materials.

pdf icon
Datasheet(Technical Reference)
pdf icon
15 way right angle mount PCB receptacle assembly, Amplimite HD-20 Series, 5745782-x - Customer Drawing(Technical Reference)
