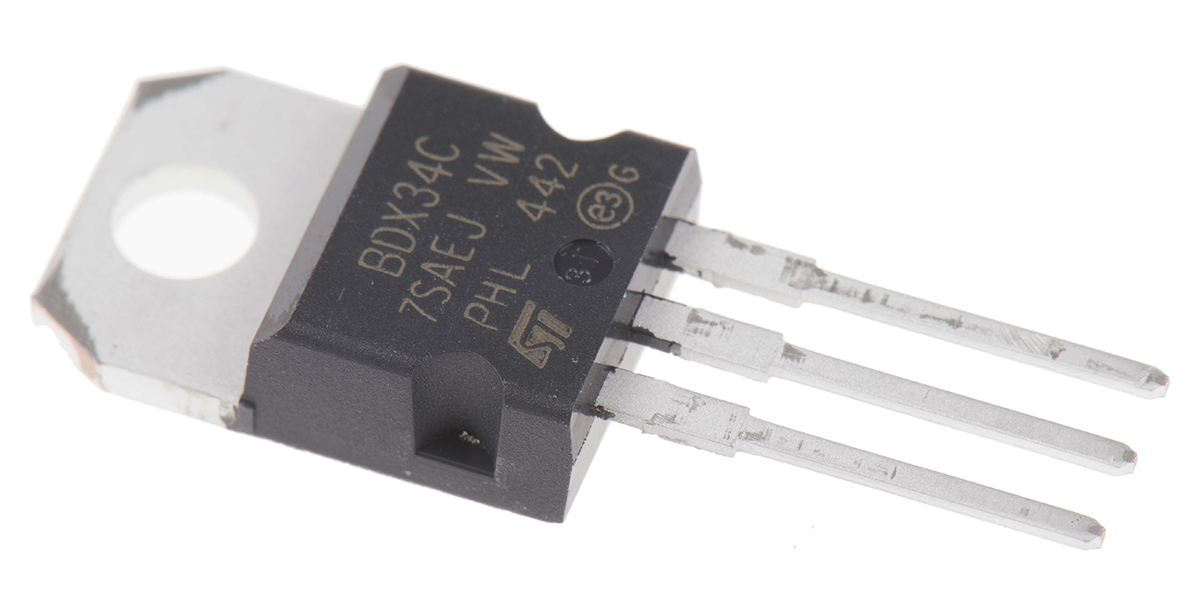

Magnatec BDX34C PNP Darlington Pair, 10 A 100 V HFE:750, 3-Pin TO-220

BDX34C Magnatec PNP Darlington Pair, 10 A 100 V HFE:750, 3-Pin TO-220
BDX34C
Magnatec

Product Information

Minimum DC Current Gain:
750
Transistor Type:
PNP
Dimensions:
10.4 x 4.6 x 9.15mm
Mounting Type:
Through Hole
Maximum Collector Emitter Voltage:
100 V
Maximum Continuous Collector Current:
10 A
Maximum Collector Base Voltage:
100 V
Maximum Collector Cut-off Current:
0.2mA
Height:
9.15mm
Width:
4.6mm
Length:
10.4mm
Package Type:
TO-220
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Collector Emitter Saturation Voltage:
2.5 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is PNP Darlington Pair 10 A 100 V HFE:750 3-Pin TO-220 manufactured by Magnatec. The manufacturer part number is BDX34C. The transistor is a pnp type. The given dimensions of the product include 10.4 x 4.6 x 9.15mm. The product is available in through hole configuration. In addition, the height is 9.15mm. Furthermore, the product is 4.6mm wide. Its accurate length is 10.4mm. Whereas, the minimum operating temperature of the product is -65 °c. It has a maximum operating temperature of +150 °c.

pdf icon
TRANSISTOR BDX(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
