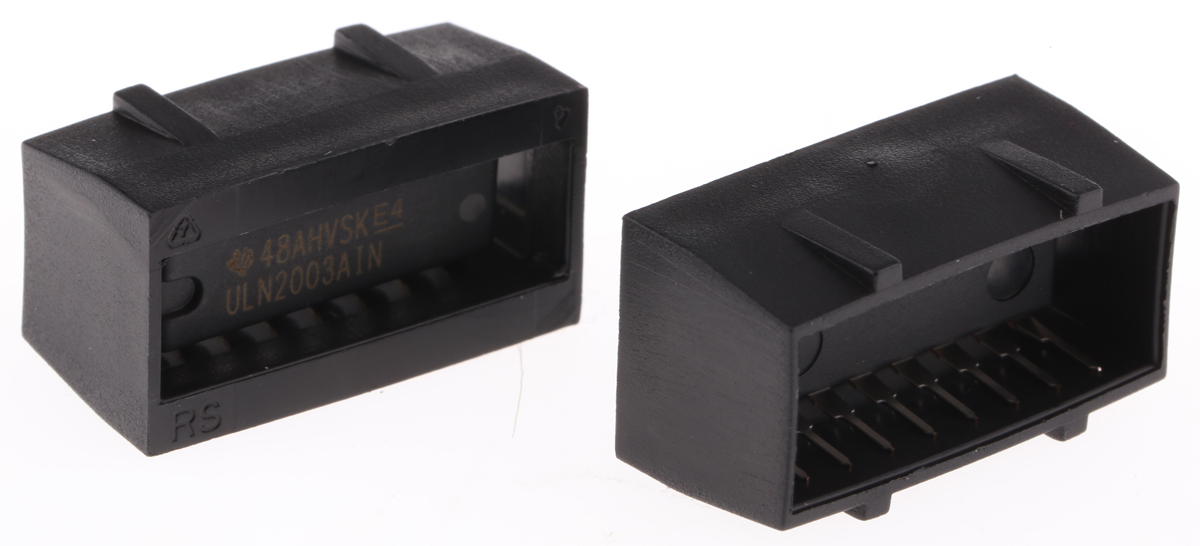

Texas Instruments ULN2003AINE4, 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin PDIP

ULN2003AINE4 Texas Instruments , 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin PDIP
ULN2003AINE4
Texas Instruments

Product Information

Transistor Type:
NPN
Dimensions:
19.69 x 6.6 x 5.08mm
Mounting Type:
Through Hole
Maximum Continuous Collector Current:
500 mA
Maximum Collector Emitter Saturation Voltage:
1.6 V
Maximum Collector Emitter Voltage:
50 V
Maximum Collector Cut-off Current:
0.5mA
Height:
5.08mm
Width:
6.6mm
Length:
19.69mm
Package Type:
PDIP
Number of Elements per Chip:
7
Maximum Operating Temperature:
+150 °C
Pin Count:
16
Transistor Configuration:
Common Emitter
RoHS Status:
ROHS3 Compliant
Series:
*
Package:
Tube
standardLeadTime:
6 Weeks
RoHs Compliant
Checking for live stock

This is 7-element NPN Darlington Pair 500 mA 50 V 16-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is ULN2003AINE4. The transistor is a npn type. The given dimensions of the product include 19.69 x 6.6 x 5.08mm. The product is available in through hole configuration. In addition, the height is 5.08mm. Furthermore, the product is 6.6mm wide. Its accurate length is 19.69mm. It has a maximum operating temperature of +150 °c. The product is rohs3 compliant. It is shipped in tube. It has a long 6 weeks standard lead time.

pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ULN2003AINE4 on website for other similar products.
We accept all major payment methods for all products including ET14015931. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with ULN2003AINE4 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Darlington Pairs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments ULN2003AINE4, 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments ULN2003AINE4, 7-element NPN Darlington Pair, 500 mA 50 V, 16-Pin PDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14015931 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ULN2003AINE4.
Yes. You can also search ULN2003AINE4 on website for other similar products.
Yes. We ship ULN2003AINE4 Internationally to many countries around the world.
