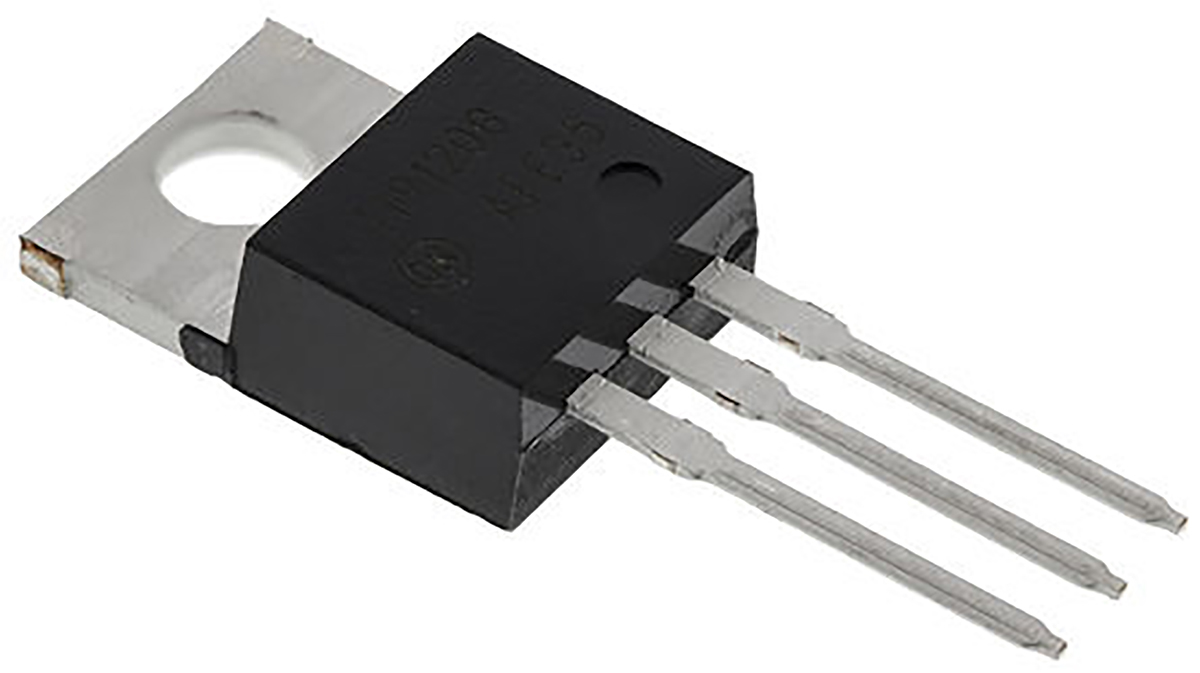

Minimum DC Current Gain:
1000
Transistor Type:
NPN
Dimensions:
15.75 x 10.28 x 4.82mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
65 W
Maximum Continuous Collector Current:
8 A
Maximum Collector Base Voltage:
60 V
Maximum Collector Emitter Voltage:
60 V
Maximum Collector Cut-off Current:
0.5mA
Height:
4.82mm
Width:
10.28mm
Length:
15.75mm
Package Type:
TO-220
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Collector Emitter Saturation Voltage:
4 V
Maximum Emitter Base Voltage:
5 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
5 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
60 V
Operating Temperature:
-65°C ~ 150°C (TJ)
Package / Case:
TO-220-3
DC Current Gain (hFE) (Min) @ Ic, Vce:
1000 @ 3A, 3V
Frequency - Transition:
-
Vce Saturation (Max) @ Ib, Ic:
4V @ 20mA, 5A
REACH Status:
REACH Unaffected
Transistor Type:
NPN - Darlington
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
58 Weeks
Current - Collector Cutoff (Max):
500µA
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-220
Power - Max:
2 W
Base Product Number:
TIP120
ECCN:
EAR99
