Minimum DC Current Gain:
1000
Transistor Type:
NPN
Dimensions:
10.63 x 4.9 x 16.12mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
2 W
Maximum Continuous Collector Current:
8 A
Maximum Collector Base Voltage:
100 V
Maximum Collector Emitter Voltage:
100 V
Maximum Collector Cut-off Current:
10µA
Height:
16.12mm
Width:
4.9mm
Length:
10.63mm
Package Type:
TO-220FP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Collector Emitter Saturation Voltage:
3.5 V dc
Maximum Emitter Base Voltage:
5 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
5 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
100 V
Operating Temperature:
-65°C ~ 150°C (TJ)
Package / Case:
TO-220-3 Full Pack
DC Current Gain (hFE) (Min) @ Ic, Vce:
2000 @ 3A, 3V
Frequency - Transition:
-
Vce Saturation (Max) @ Ib, Ic:
3.5V @ 20mA, 5A
REACH Status:
REACH Unaffected
Transistor Type:
NPN - Darlington
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
51 Weeks
Current - Collector Cutoff (Max):
10µA
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-220FP
Power - Max:
2 W
Base Product Number:

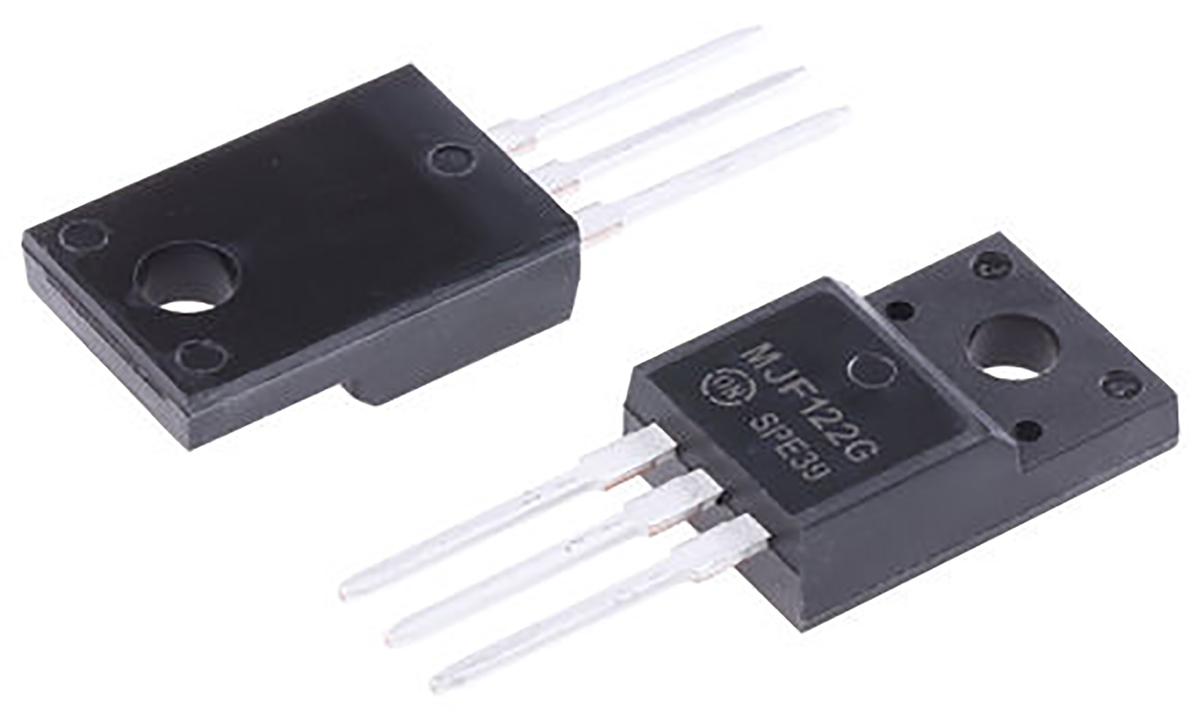

MJF122
ECCN:
EAR99
