Minimum DC Current Gain:
1000
Transistor Type:
NPN
Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Emitter Base Voltage:
5 V
Maximum Continuous Collector Current:
500 mA
Maximum Collector Emitter Voltage:
50 V
Height:
1.5mm
Width:
4mm
Length:
10mm

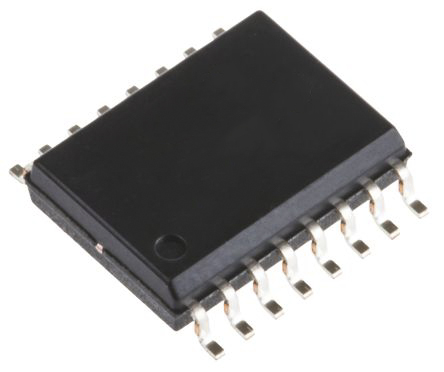

Package Type:
SOIC
Number of Elements per Chip:
7
Minimum Operating Temperature:
-40 °C
Maximum Collector Emitter Saturation Voltage:
1.6 V
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Transistor Configuration:
Common Emitter
Current - Collector (Ic) (Max):
500mA
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
50V
Operating Temperature:
150°C (TJ)
Package / Case:
16-SOIC (0.154", 3.90mm Width)
DC Current Gain (hFE) (Min) @ Ic, Vce:
1000 @ 350mA, 2V
Frequency - Transition:
-
Vce Saturation (Max) @ Ib, Ic:
1.6V @ 500µA, 350mA
REACH Status:
REACH Unaffected
Transistor Type:
7 NPN Darlington
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
32 Weeks
Current - Collector Cutoff (Max):
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
16-SOIC
Power - Max:
-
Base Product Number:
MC1413
ECCN:
EAR99
