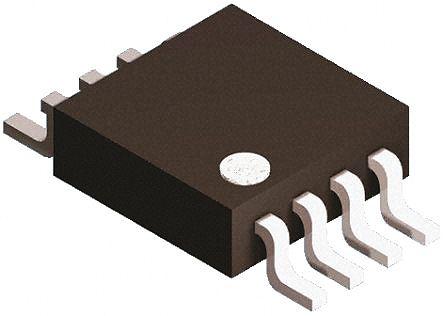

DiodesZetex AP5002SG-13, Dual, Step Down DC-DC Converter, Adjustable, 0.8 → 20 V, 0A 8-Pin, SOP

AP5002SG-13 DiodesZetex , Dual, Step Down DC-DC Converter, Adjustable, 0.8 → 20 V, 0A 8-Pin, SOP
DiodesZetex

Product Information

Dimensions:
4.95 x 3.95 x 1.5mm
Minimum Output Current:
0A
Width:
3.95mm
Maximum Output Voltage:
20 V
Load Regulation:
1 %
Output Type:
Adjustable
Maximum Switching Frequency:
600 kHz
Package Type:
SOP
Maximum Operating Temperature:
+85 °C
Number of Outputs:
2
Converter Type:
Step Down
Line Regulation:
2 %
Length:
4.95mm
Minimum Output Voltage:
0.8 V
Pin Count:
8
Mounting Type:
Surface Mount
Height:
1.5mm
Minimum Operating Temperature:
-20 °C
Minimum Input Voltage:
3.6 V
Maximum Output Current:
2A
Maximum Input Voltage:
20 V
Switching Regulator:
Yes
RoHs Compliant
Checking for live stock

This is Dual Step Down DC-DC Converter Adjustable 0.8 → 20 V 0A 8-Pin SOP manufactured by DiodesZetex. The manufacturer part number is AP5002SG-13. The given dimensions of the product include 4.95 x 3.95 x 1.5mm. Furthermore, the product is 3.95mm wide. Load Regulation - 1 %. Furthermore, it has aadjustable output. It has a maximum operating temperature of +85 °c. Additionally, the product is supplied with 2 outputs. Has a line regulation of 2 %. Its accurate length is 4.95mm. The product is available in surface mount configuration. In addition, the height is 1.5mm. Whereas, the minimum operating temperature of the product is -20 °c.
