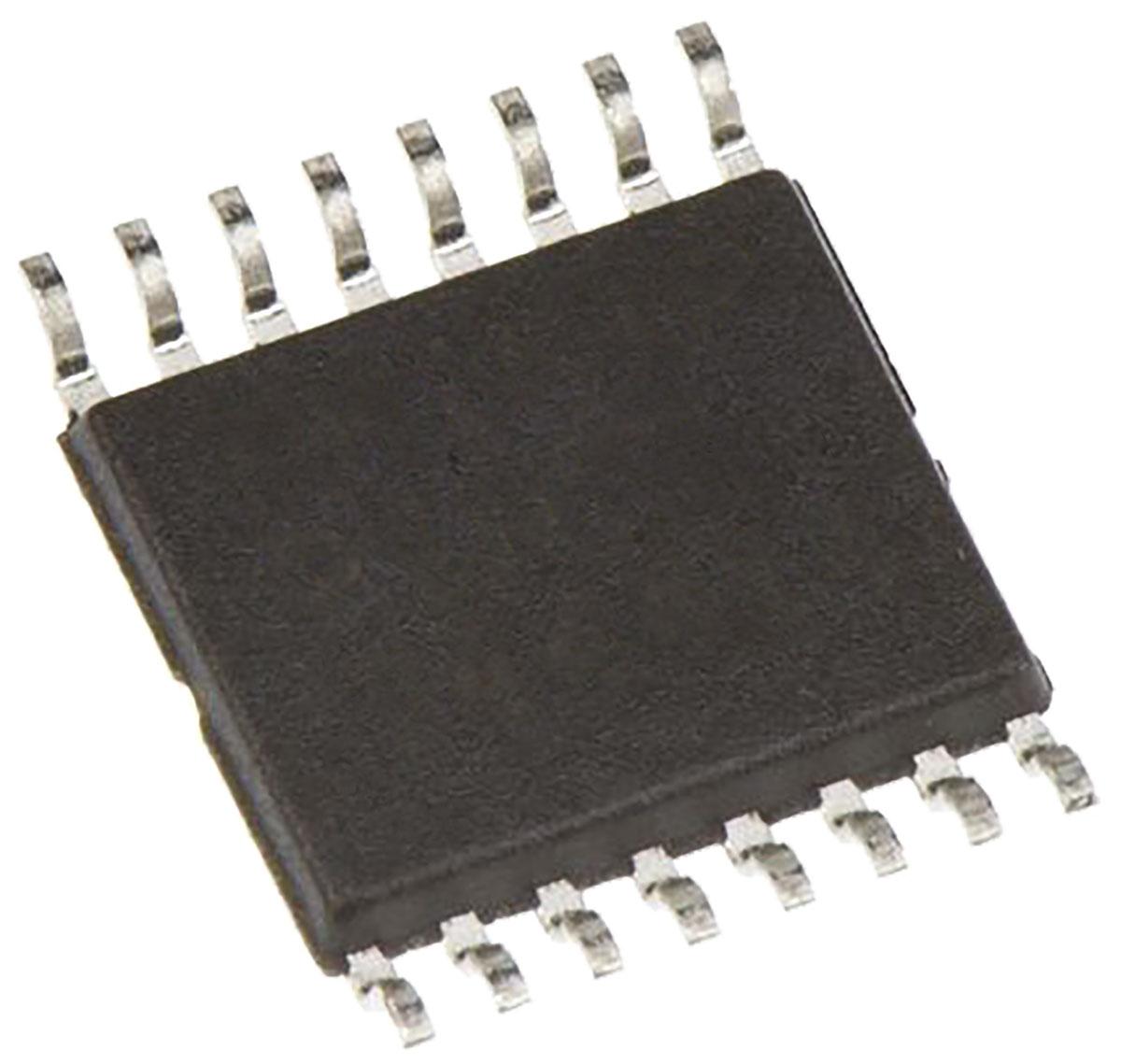

Linear Technology LT3800EFE#PBF, 1-Channel, Step Down High Voltage DC-DC Converter 16-Pin, TSSOP

LT3800EFE-PBF Linear Technology LT3800EFE#PBF, 1-Channel, Step Down High Voltage DC-DC Converter 16-Pin, TSSOP
LT3800EFE#PBF
Analog Devices

Product Information

Number of Outputs:
1
Converter Type:
Step Down
Dimensions:
5.1 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
36 V
Maximum Switching Frequency:
0.22 MHz
Output Type:
Fixed
Height:
0.95mm
Width:
4.5mm
Length:
5.1mm
Package Type:
TSSOP
Switching Regulator:
Yes
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
4 V
Maximum Operating Temperature:
+125 °C
Pin Count:
16
Maximum Input Voltage:
60 V
RoHs Compliant
Checking for live stock

This is Linear Technology 1-Channel Step Down High Voltage DC-DC Converter 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is LT3800EFE#PBF. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 5.1 x 4.5 x 0.95mm. The product is available in surface mount configuration. Furthermore, it has afixed output. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 5.1mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c.

pdf icon
LT3800, High-Voltage Synchronous Current Mode Step-Down Controller(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
