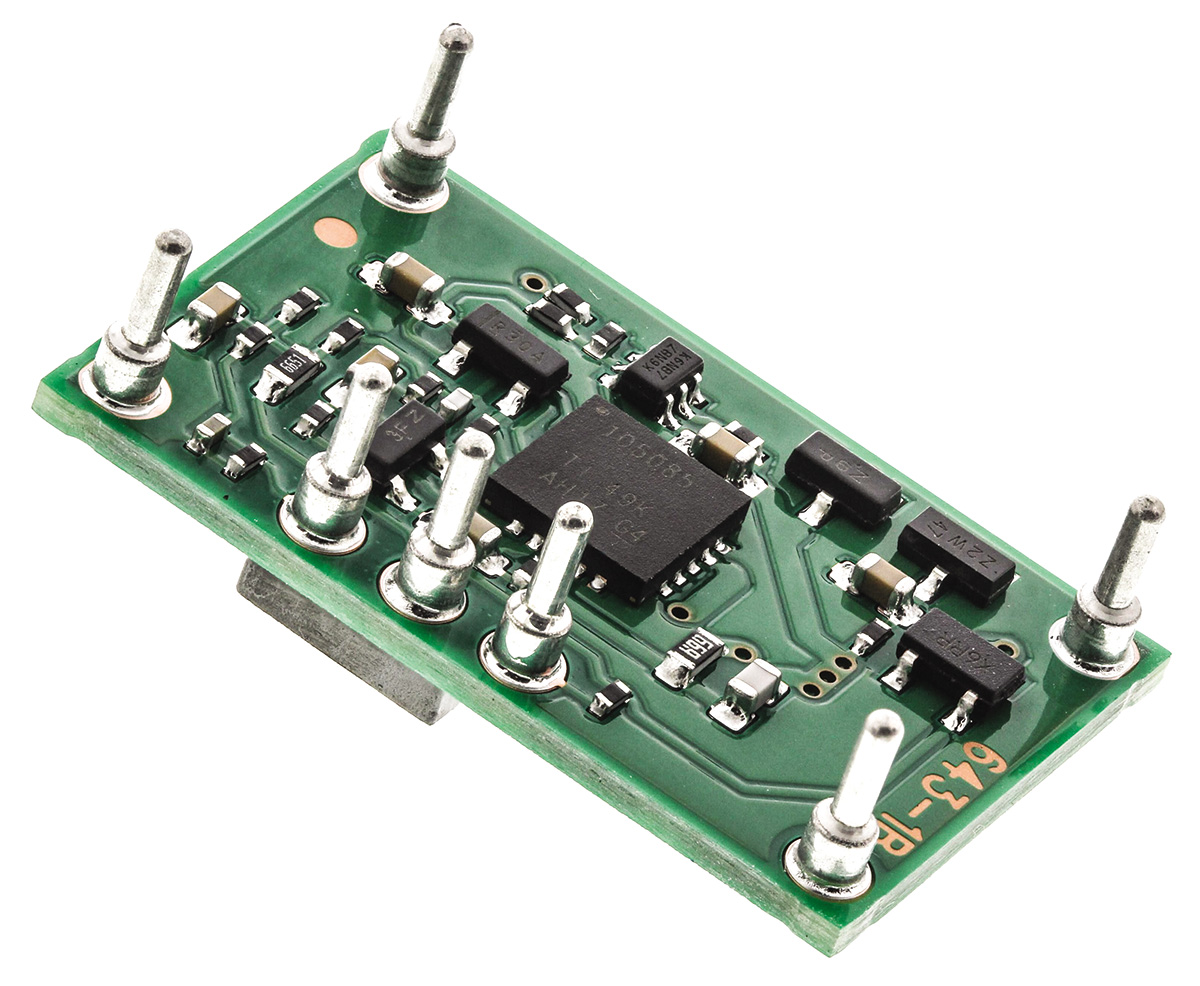

Texas Instruments PTN78060HAH, DC-DC Power Supply Module 3A 36 V Input, 300 Khz 7-Pin, DIP Module

Enrgtech Part No: ET100105829
|
Manufacturer Part No:
PTN78060HAH
|
Manufacturer: Texas Instruments

PTN78060HAH Texas Instruments , DC-DC Power Supply Module 3A 36 V Input, 300 Khz 7-Pin, DIP Module

(0)

Product Information

Width:

15.75mm

Height:

8.75mm

Length:

25.27mm

Pin Count:

Dimensions:

25.27 x 15.75 x 8.75mm

Package Type:

DIP Module

Mounting Type:

Through Hole

Line Regulation:

±10 mV

Load Regulation:

±10 mV

Number of Outputs:

Maximum Input Voltage:

36 V

Minimum Input Voltage:

15 V

36 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 28.29

£ 1018.44

Mfr Part No:

PTN78060HAH

Seller:

Texas Instruments

Origin:

Warranty:

Manufacturer

Data Code:

ET100105829

Order Today!

From: United Kingdom

Est Ship Date: 15 Jul, 2026

Est Fastest Delivery: 16 Jul, 2026

Quantity Quantity

This is DC-DC Power Supply Module 3A 36 V Input 300 Khz 7-Pin DIP Module manufactured by Texas Instruments. The manufacturer part number is PTN78060HAH. Furthermore, the product is 15.75mm wide. In addition, the height is 8.75mm. Its accurate length is 25.27mm. The given dimensions of the product include 25.27 x 15.75 x 8.75mm. The product is available in through hole configuration. Has a line regulation of ±10 mv. Load Regulation - ±10 mv. Additionally, the product is supplied with 1 outputs. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c.
