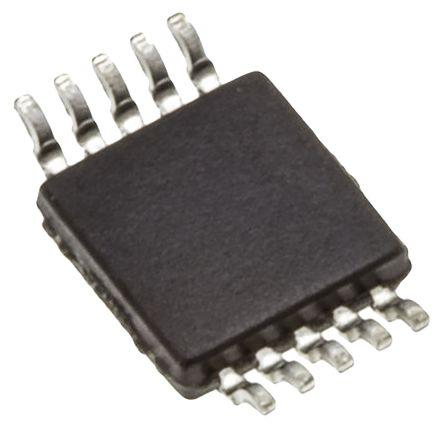

Linear Technology LTC3704EMS#PBF

LTC3704EMS-PBF Linear Technology LTC3704EMS#PBF
LTC3704EMS#PBF
Linear Technology

Product Information

Number of Outputs:
1
Dimensions:
3 x 3 x 0.86mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+85 °C
Maximum Switching Frequency:
350 kHz
Height:
0.86mm
Width:
3mm
Length:
3mm
Maximum Input Voltage:
36 V
Package Type:
MSOP
Maximum Output Voltage:
5.4 V
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
5 V
Minimum Input Voltage:
2.5 V
Maximum Output Current:
50mA
Pin Count:
10
Controller Type:
Positive to Negative Controller
Synchronous Rectifier:
No
HTSUS:
8542.39.0001
Supplier Device Package:
10-MSOP
Operating Temperature:
-40°C ~ 85°C (TA)
Voltage - Supply (Vcc/Vdd):
2.5V ~ 36V
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Function:
Step-Up/Step-Down
Frequency - Switching:
50kHz ~ 1MHz
Output Type:
Transistor Driver
Output Phases:
1
Topology:
Cuk
Control Features:
Enable, Frequency Control
Number of Outputs:
1
Package:
Bulk
Clock Sync:
Yes
Duty Cycle (Max):
92%
Mounting Type:
Surface Mount
Series:
-
Serial Interfaces:
-
Output Configuration:
Negative
Base Product Number:
LTC3704
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Linear Technology. The manufacturer part number is LTC3704EMS#PBF. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 3 x 3 x 0.86mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85 °c. In addition, the height is 0.86mm. Furthermore, the product is 3mm wide. Its accurate length is 3mm. Whereas, the minimum operating temperature of the product is -40 °c. This also includes no synchronous rectifier. It is assigned with possible HTSUS value of 8542.39.0001. 10-msop is the supplier device package value. The product has -40°c ~ 85°c (ta) operating temperature range. The supply voltage of a bespoke product includes 2.5v ~ 36v. Moreover, the product comes in [Package/ Case]. It performs basic function of step-up/step-down. The switching frequency of the standard product is 50khz ~ 1mhz. Furthermore, it has atransistor driver output. Features 1 output phases. Topology includes cuk. Possible control features include enable, frequency control. It is shipped in bulk. Clock Sync Info: yes. It features a maximum duty cycle of 92%. It boasts negative output configuration. Moreover, it corresponds to ltc3704, a base product number of the product. The product is designated with the ear99 code number

pdf icon
LTC3704, Wide Input Range, No RSENSE Positive-to-Negative DC/DC Controller Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
