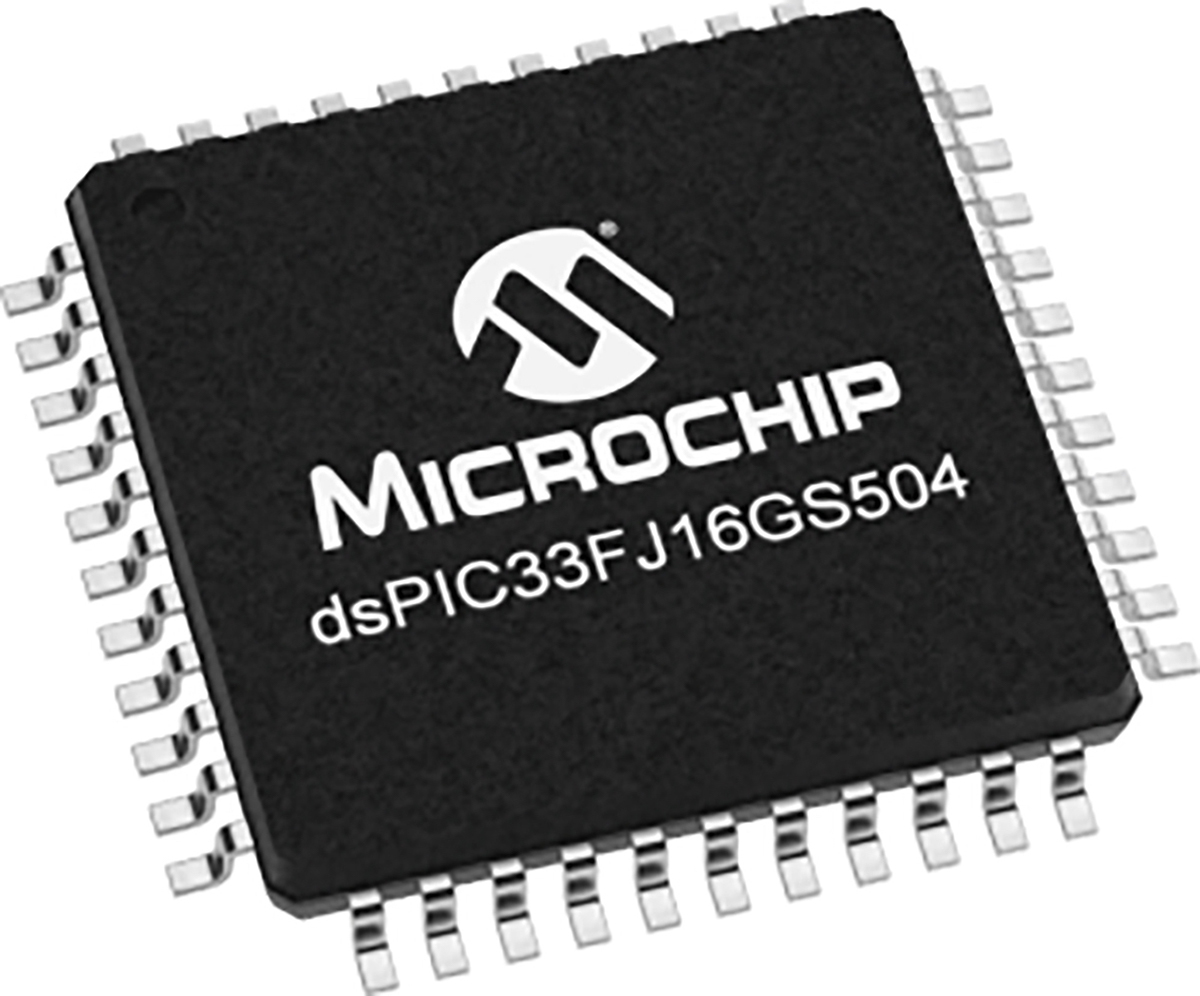

DSPIC33FJ16GS504-E/PT Microchip DSPIC33FJ16GS504, 16bit Digital Signal Processor 40MHz 16 kB Flash 44-Pin TQFP

DSPIC33FJ16GS504-E-PT DSPIC33FJ16GS504-E/PT Microchip DSPIC33FJ16GS504, 16bit Digital Signal Processor 40MHz 16 kB Flash 44-Pin TQFP
Microchip

Product Information

Dimensions:
10 x 10 x 1.05mm
Number of I2C Channels:
1
Width:
10mm
Numeric and Arithmetic Format:
ALU
Program Memory Size:
16 kB
Number of PWM Units:
4
RAM Size:
2 kB
Automotive Standard:
AEC-Q100
ADC Channels:
12
Number of Timers:
2
Data Bus Width:
16bit
Instruction Set Architecture:
Harvard
Program Memory Type:
Flash
Package Type:
TQFP
Maximum Frequency:
40MHz
Maximum Operating Temperature:
+125 °C
Number of UART Channels:
1
PWM Resolution:
16bit
ADC Resolution:
10bit
Timer Resolution:
16 bit, 32bit
Timers:
1 x 32-bit, 3 x 16-bit
Device Million Instructions per Second:
40MIPS
Number of ADC Units:
2
Pin Count:
44
Pulse Width Modulation:
4 (8 x 16 bit)
Mounting Type:
Surface Mount
Series:
DSPIC33FJ16GS504
PWM Channels:
8
Length:
10mm
Height:
1.05mm
ADCs:
2 (12 x 10 bit)
Minimum Operating Temperature:
-40 °C
Number of SPI Channels:
1
RoHs Compliant
Checking for live stock

This is DSPIC33FJ16GS504 16bit Digital Signal Processor 40MHz 16 kB Flash 44-Pin TQFP manufactured by Microchip. The manufacturer part number is DSPIC33FJ16GS504-E/PT. The given dimensions of the product include 10 x 10 x 1.05mm. Furthermore, the product is 10mm wide. In addition, 16 kb is the program memory size. The product has typical 2 kb RAM size. It is a flash program memory type. It has a maximum operating temperature of +125 °c. The product is available in surface mount configuration. The product dspic33fj16gs504, is a highly preferred choice for users. Its accurate length is 10mm. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DSPIC33FJ16GS504-E/PT on website for other similar products.
We accept all major payment methods for all products including ET18605908. Please check your shopping cart at the time of order.
You can order Microchip brand products with DSPIC33FJ16GS504-E/PT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Digital Signal Processors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DSPIC33FJ16GS504-E/PT Microchip DSPIC33FJ16GS504, 16bit Digital Signal Processor 40MHz 16 kB Flash 44-Pin TQFP. You can also check on our website or by contacting our customer support team for further order details on DSPIC33FJ16GS504-E/PT Microchip DSPIC33FJ16GS504, 16bit Digital Signal Processor 40MHz 16 kB Flash 44-Pin TQFP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18605908 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number DSPIC33FJ16GS504-E/PT.
Yes. You can also search DSPIC33FJ16GS504-E/PT on website for other similar products.
Yes. We ship DSPIC33FJ16GS504-E/PT Internationally to many countries around the world.
