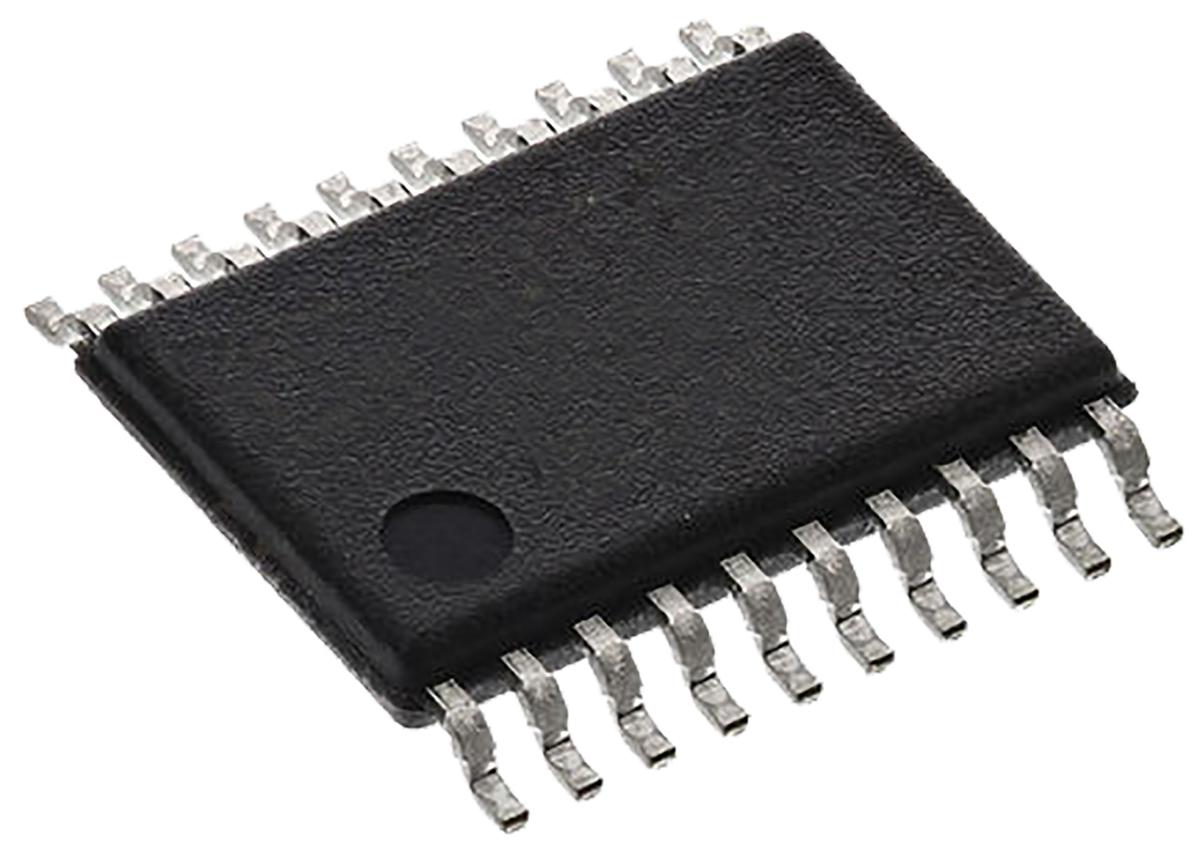

Analog Devices AD7801BRUZ, 8 bit Parallel DAC, 833ksps, 20-Pin TSSOP

AD7801BRUZ Analog Devices , 8 bit Parallel DAC, 833ksps, 20-Pin TSSOP
AD7801BRUZ
Analog Devices

Product Information

Conversion Rate:
833ksps
Integral Nonlinearity Error:
±1LSB
Dimensions:
6.5 x 4.4 x 1.05mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
2µs
Digital Interface Type:
Parallel
Typical Single Supply Voltage:
3.3 V, 5 V
Full Scale Error:
-0.75LSB
Package Type:
TSSOP
Architecture:
Current Steering
Output Polarity:
Unipolar
Voltage Reference:
External, Internal
Maximum Operating Temperature:
105 °C
Resolution:
8 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 8 bit Parallel DAC 833ksps 20-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD7801BRUZ. The given dimensions of the product include 6.5 x 4.4 x 1.05mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. The product has been designed as current steering. It has a maximum operating temperature of 105 °c. Features 8 bit resolution.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD7801BRUZ Data Sheet(Technical Reference)
