Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac
Width:
55mm
MTBF:
1292102h
Electrical Phase:
1
Type:
Switch Mode
Standards Met:
ABS, ANSI/ISA-12.12.01, ATEX, CB, cCSAus, CE Certified, CSA, CSA C22.2, cUL Listed, cULus Listed, E197259, EN 50178, EN 55022 Class B, EN 60529, EN 60715, EN 60950-1, EN 61000-3-2, EN 61000-6-2, GL, IECEx, UL 489, UL 508, UL Listed
Efficiency:
94%
Input Voltage:
120 → 230V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
24 → 28.8V
Ripple And Noise:
50mV Pk-Pk
Hazardous Area Certification:
ATEX, IECEx
Depth:
125mm
Mounting Type:
DIN Rail Mount
Output Current:
10A
Series:

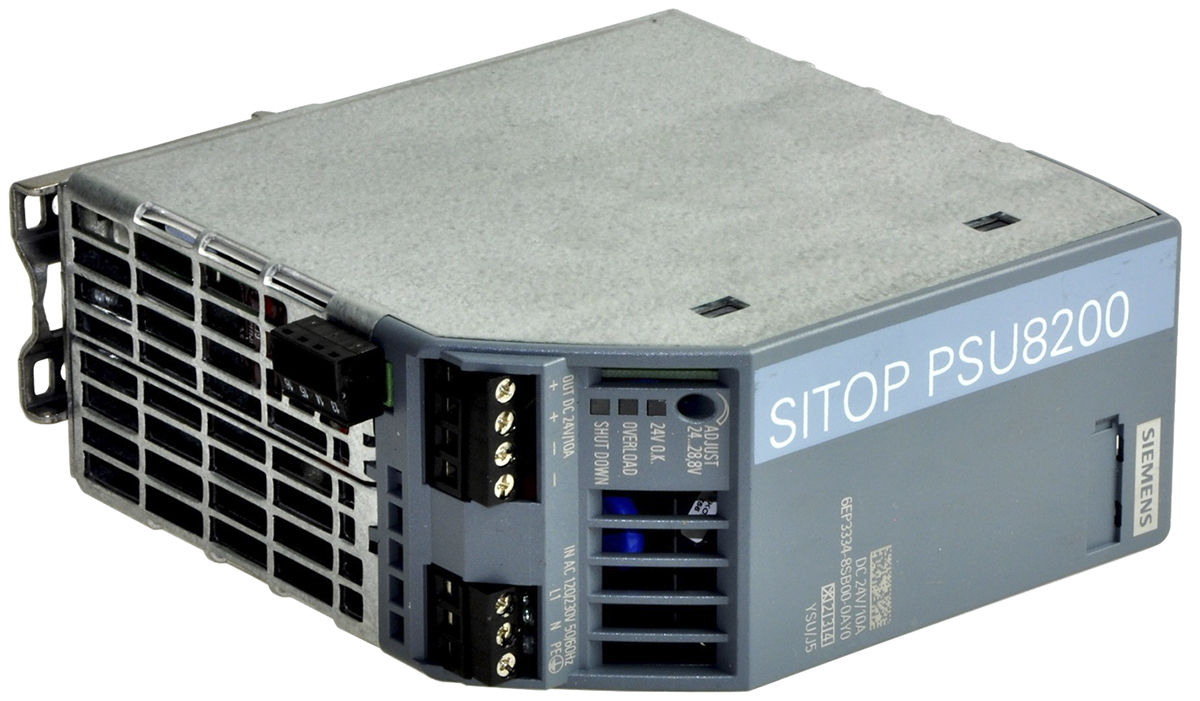

SITOP PSU8200
Height:
125mm
Output Voltage:
24V dc
Power Rating:
240W
