Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-40°C
Width:
32mm
MTBF:
135000h
Electrical Phase:
1
Type:
Switch Mode
Load Regulation:
1.5%
Standards Met:
ANSI/ISA 12.12.01, CSA C22.2 No. 107.1, CSA C22.2 No. 213, CSA C22.2 No. 60950-1, EN 50178, EN 55011 Class B, EN 60950-1, EN 61000-3-2, EN 61204-3 Class B, EN/IEC 60204-1, EN/IEC 61558-2-16, UL 508, UL 60950-1 Recognised
Efficiency:
86 % @ 230 V ac, 87 % @ 115 V ac
Input Voltage:
230V ac
Number of Outputs:
1
Ripple And Noise:
190mV Pk-Pk
Depth:
91.2mm
Special Features:
5-Year Warranty, DC Input Supported, High Efficiency, Overload, Power Boost Function, Short Circuit Proof, Side-by-Side Mount, Virtually No Inrush Current
Mounting Type:
DIN Rail Mount
Output Current:
1.3A

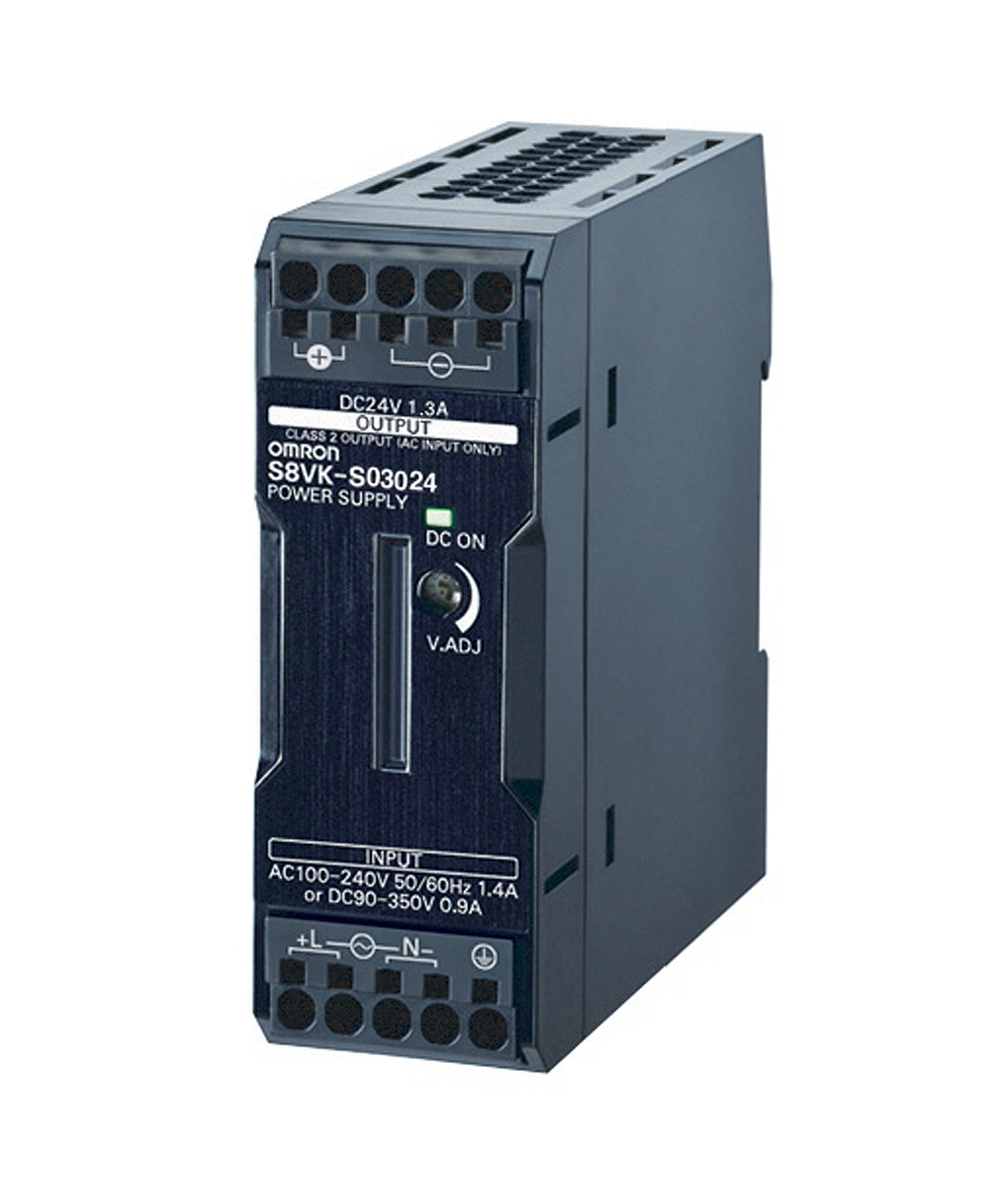

Series:
S8VK-S
Height:
90mm
Output Voltage:
24V dc
Power Rating:
30W
