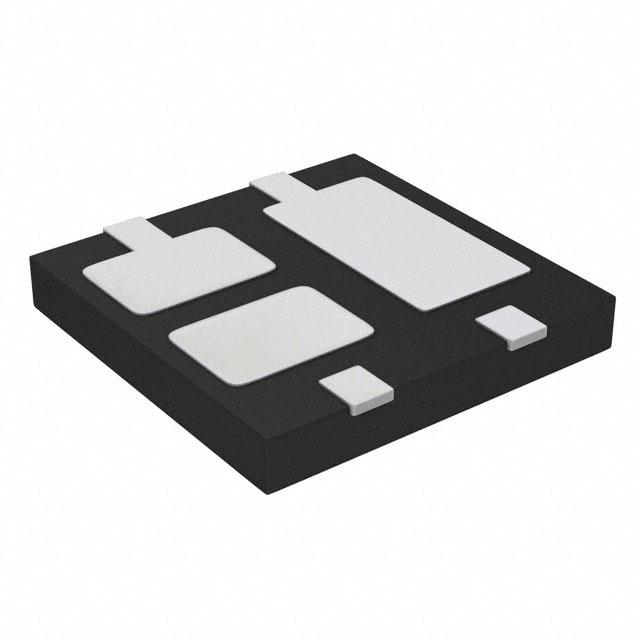

onsemi 30V 1A, Quad Schottky Diode, 4-Pin U-DFN3030 NSR1030QMUTAG

NSR1030QMUTAG onsemi 30V 1A, Quad Schottky Diode, 4-Pin U-DFN3030
onsemi

Product Information

Mounting Type:
Surface Mount
Peak Reverse Recovery Time:
25ns
Peak Non-Repetitive Forward Surge Current:
40A
Maximum Forward Voltage Drop:
600mV
Maximum Continuous Forward Current:
1A
Diode Technology:
Schottky
Package Type:
U-DFN3030
Number of Elements per Chip:
4
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
4
Peak Reverse Repetitive Voltage:
30V
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Voltage - Peak Reverse (Max):
30 V
Operating Temperature:
125°C (TJ)
Package / Case:
4-UDFN Exposed Pad
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
1 A
Voltage - Forward (Vf) (Max) @ If:
600 mV @ 1 A
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Reverse Leakage @ Vr:
20 µA @ 30 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
4-UDFN (3x3)
Diode Type:
Single Phase
Technology:
Schottky
Base Product Number:
NSR103
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 30V 1A Quad Schottky Diode 4-Pin U-DFN3030 manufactured by onsemi. The manufacturer part number is NSR1030QMUTAG. The product is available in surface mount configuration. It is designed with a schottky diode. The diode features a single configuration. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The maximum peak reverse voltage is 30 v. The product has 125°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. In addition, it is reach unaffected. It features a 1 a of average rectified current. The product has a maximum forward voltage of 600 mv @ 1 a. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). 20 µa @ 30 v is the reverse leakage value of a bespoke product. 4-udfn (3x3) is the supplier device package value. It is designed with a single phase diode. This product use schottky technology. Moreover, it corresponds to nsr103, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Schottky Barrier Diode Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
NSR1030QMUTAG(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search NSR1030QMUTAG on website for other similar products.
We accept all major payment methods for all products including ET21457132. Please check your shopping cart at the time of order.
You can order onsemi brand products with NSR1030QMUTAG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Diodes - Bridge Rectifiers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi 30V 1A, Quad Schottky Diode, 4-Pin U-DFN3030 NSR1030QMUTAG. You can also check on our website or by contacting our customer support team for further order details on onsemi 30V 1A, Quad Schottky Diode, 4-Pin U-DFN3030 NSR1030QMUTAG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21457132 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number NSR1030QMUTAG.
Yes. You can also search NSR1030QMUTAG on website for other similar products.
Yes. We ship NSR1030QMUTAG Internationally to many countries around the world.
