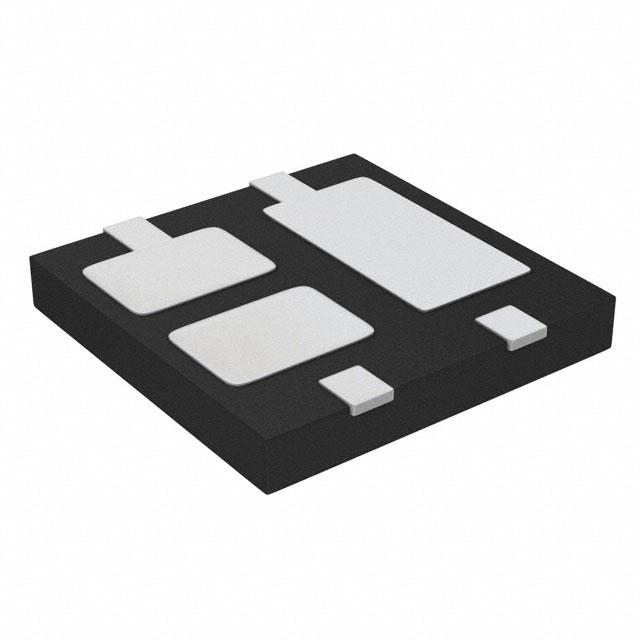

onsemi NSR2030QMUTAG, Bridge Rectifier, 2A 30V, 4-Pin U-DFN3535

NSR2030QMUTAG onsemi , Bridge Rectifier, 2A 30V, 4-Pin U-DFN3535
onsemi

Product Information

Peak Reverse Current:
20µA
Dimensions:
3.5 x 3.5 x 0.5mm
Bridge Type:
Single Phase
Diode Technology:
Schottky
Peak Average Forward Current:
2A
Junction Capacitance:
102pF
Peak Non-Repetitive Forward Surge Current:
12.5A
Height:
0.5mm
Peak Forward Voltage:
650mV
Width:
3.5mm
Length:
3.5mm
Package Type:
U-DFN3535
Peak Reverse Repetitive Voltage:
30V
Mounting Type:
Surface Mount
Configuration:
Single
Maximum Operating Temperature:
+125 °C
Pin Count:
4
HTSUS:
8541.10.0080
RoHS Status:
ROHS3 Compliant
Voltage - Peak Reverse (Max):
30 V
Operating Temperature:
125°C (TJ)
Package / Case:
4-UDFN Exposed Pad
REACH Status:
REACH Unaffected
Current - Average Rectified (Io):
2 A
Voltage - Forward (Vf) (Max) @ If:
650 mV @ 2 A
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Reverse Leakage @ Vr:
20 µA @ 30 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
4-UDFN (3.5x3.5)
Diode Type:
Single Phase
Technology:
Schottky
Base Product Number:
NSR2030
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Bridge Rectifier 2A 30V 4-Pin U-DFN3535 manufactured by onsemi. The manufacturer part number is NSR2030QMUTAG. The given dimensions of the product include 3.5 x 3.5 x 0.5mm. In addition, the height is 0.5mm. Furthermore, the product is 3.5mm wide. Its accurate length is 3.5mm. The product is available in surface mount configuration. The product is available in single configuration. It has a maximum operating temperature of +125 °c. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. The maximum peak reverse voltage is 30 v. The product has 125°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. In addition, it is reach unaffected. It features a 2 a of average rectified current. The product has a maximum forward voltage of 650 mv @ 2 a. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). 20 µa @ 30 v is the reverse leakage value of a bespoke product. 4-udfn (3.5x3.5) is the supplier device package value. It is designed with a single phase diode. This product use schottky technology. Moreover, it corresponds to nsr2030, a base product number of the product. The product is designated with the ear99 code number

pdf icon
NSR2030 Schottky Full Bridge Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
NSR2030QMUTAG(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
