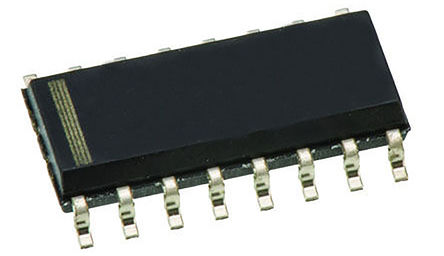

Onsemi, MC74HC138ADG, 16-Pin SOIC, Integrated Circuit (IC) Decoder/Demultiplexer, 10 x 4 x 1.5mm

MC74HC138ADG Onsemi, , 16-Pin SOIC, Integrated Circuit (IC) Decoder/Demultiplexer, 10 x 4 x 1.5mm
MC74HC138ADG
MC74HC138ADG
onsemi

Product Information

Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
2 V
Package Type:
SOIC
Minimum Operating Temperature:
-55 °C
Maximum Operating Supply Voltage:
6 V
Maximum Operating Temperature:
+125 °C
Pin Count:
16
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Package / Case:
16-SOIC (0.154", 3.90mm Width)
Type:
Decoder/Demultiplexer
REACH Status:
REACH Unaffected
Voltage Supply Source:
Single Supply
Independent Circuits:
1
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
1 x 3:8
standardLeadTime:
27 Weeks
Mounting Type:
Surface Mount
Series:
74HC
Supplier Device Package:
16-SOIC
Voltage - Supply:
2V ~ 6V
Current - Output High, Low:
5.2mA, 5.2mA
Base Product Number:
74HC138
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The MC74HC138ADG is an integrated circuit (IC) decoder/demultiplexer (1-of-8) manufactured by ON Semiconductor. It belongs to the HC family of high-speed CMOS logic devices and is designed to provide the decoding of three binary inputs into eight mutually exclusive outputs.

Features and Specifications of MC74HC138ADG:

  • The MC74HC138ADG has a maximum operating frequency of 33 MHz, making it suitable for a wide range of applications that require fast decoding of digital signals.
  • It operates with a supply voltage range of 2V to 6V, allowing it to be used in a variety of circuits with different power supply requirements.
  • The device has three binary inputs (A, B, and C) and eight outputs (Y0 to Y7).
  • When the input signals are applied, the device decodes the binary input to enable one of the eight output lines based on the binary code applied to the inputs.
  • The device features active-low allow (G) input used to enable or disable the device.

Advantages to Users:

The MC74HC138ADG has several advantages over other types of decoder/demultiplexer ICs. Some of the key advantages of using the MC74HC138ADG include the following:

  • High-speed operation.
  • Low power consumption.
  • Wide supply voltage range.
  • Compact size and low cost.
  • Easy to use and implement in circuits.

Typical Applications of MC74HC138ADG:

The MC74HC138ADG is widely used in digital electronics and microcontroller-based systems where it is necessary to decode binary information and select a particular output based on the input code. Some of the most common applications of the MC74HC138ADG include:

  • Address decoding in memory devices.
  • Setting different peripherals in a microcontroller-based system.
  • Multiplexing and demultiplexing digital signals.
  • Control logic in digital circuits.
  • Decoding signals in communication systems.
