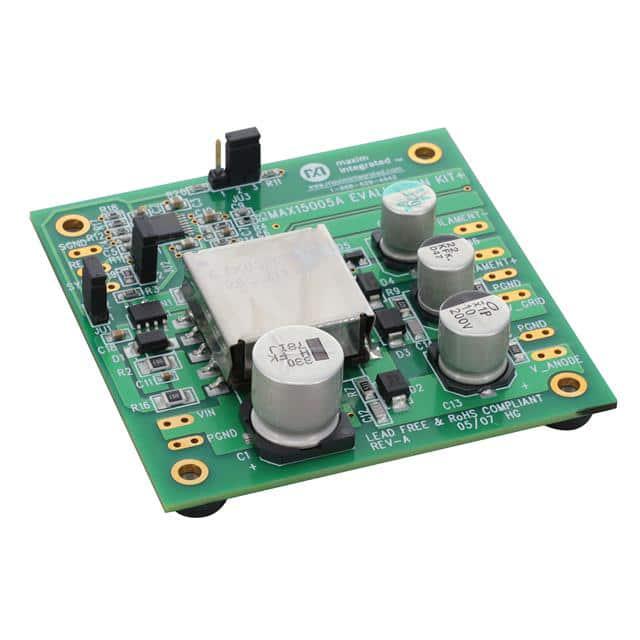

Analog Devices Inc./Maxim Integrated MAX15005AEVKIT+

Enrgtech Part No: ET22730513
|
Manufacturer Part No:
MAX15005AEVKIT+
|
Manufacturer: Analog Devices Inc./Maxim Integrated

(0)

Product Information

Main Purpose:

DC/DC, Step Up or Down

HTSUS:

8473.30.1180

RoHS Status:

Not applicable

Voltage - Input:

6.5V ~ 16V

Frequency - Switching:

100kHz

REACH Status:

REACH Unaffected

Current - Output:

650mA, 55mA, 12mA

Board Type:

Fully Populated

Package:

Box

Moisture Sensitivity Level (MSL):

1 (Unlimited)

standardLeadTime:

6 Weeks

Regulator Topology:

Flyback

Checking for live stock

This is manufactured by Analog Devices Inc./Maxim Integrated. The manufacturer part number is MAX15005AEVKIT+. Basic Purpose: dc/dc, step up or down. It is assigned with possible HTSUS value of 8473.30.1180. The product is not applicable. The possible product's input voltage is 6.5v ~ 16v. The switching frequency of the standard product is 100khz. In addition, it is reach unaffected. While, the output current includes 650ma, 55ma, 12ma. It is a fully populated type. It is shipped in box. Its typical moisture sensitivity level is 1 (unlimited). It has a long 6 weeks standard lead time. The product offers flyback regulator topology. Additionally, [Utilised IC / Part] is the used part of the product. Furthermore, the output voltage is 3v, 60v, 110v. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number Moreover, it corresponds to max15005, a base product number of the product. The output and type include 3, isolated.

MAX15005A Eval Kit(Datasheets)

MAX15004-05(Datasheets)

Reference Design Ensures Dynamic Output Voltages for a Print-Head Power Supply(Mfg Application Notes)

Trends in High-Performance Power-Supply Design for Automotive Infotainment(Mfg Application Notes)

How to Use the MAX15005 Current-Mode Controller as a Boost Circuit for an Automotive Cold-Crank Condition(Mfg Application Notes)

Maxim Integrated RoHS Cert(Environmental Information)

Maxim Integrated REACH(Environmental Information)
