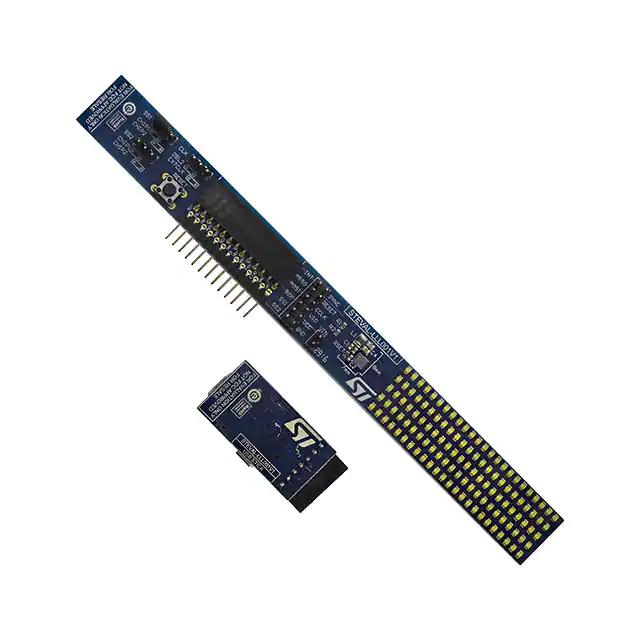

STMicroelectronics STEVAL-LLL001V1

STEVAL-LLL001V1 STMicroelectronics
STEVAL-LLL001V1
STEVAL-LLL001V1 STMicroelectronics
STMicroelectronics

Product Information

Power Management Function:
LED Driver
Featured Device:
STLED524
Kit Classification:
Evaluation Kit
HTSUS:
8473.30.1180
Current - Output / Channel:
-
Voltage - Input:
2.7V ~ 5.5V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Dimmable
Utilized IC / Part:
STLED524
Series:
-
Voltage - Output:
-
Supplied Contents:
Board(s)
ECCN:
EAR99
Base Product Number:
STEVAL
Outputs and Type:
24, Non-Isolated
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STEVAL-LLL001V1. It is assigned with possible HTSUS value of 8473.30.1180. The possible product's input voltage is 2.7v ~ 5.5v. The product is rohs3 compliant. In addition, it is reach unaffected. It is shipped in bulk. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include dimmable. Additionally, [Utilised IC / Part] is the used part of the product. The product is also supplied with contents, such as board(s). The product is designated with the ear99 code number Moreover, it corresponds to steval, a base product number of the product. The output and type include 24, non-isolated.

pdf icon
Datasheet(Technical Reference)
pdf icon
STEVAL-LLL001V1 STLED524 Driver user guide(Technical Reference)
pdf icon
STEVAL-LLL001V1 BOM(Design Resources)
pdf icon
STEVAL-LLL001V1 Schematic(Design Resources)
pdf icon
STEVAL-LLL001V1 User Manual(Datasheets)
pdf icon
STLED524(Datasheets)
pdf icon
STEVAL-LLL001V1 Brief(Datasheets)
