Eaton - Electronics Division CTX02-12236

Enrgtech Part No: ET17068738
|
Manufacturer Part No:
CTX02-12236
|
Manufacturer: Eaton - Electronics Division

CTX02-12236 Eaton - Electronics Division

(0)

Product Information

Ratings:

HTSUS:

8504.50.4000

Current - Saturation (Isat):

Inductance Frequency - Test:

100 kHz

Operating Temperature:

-20°C ~ 105°C

Package / Case:

Radial, Horizontal (Open)

Tolerance:

Shielding:

Unshielded

DC Resistance (DCR):

200mOhm Max

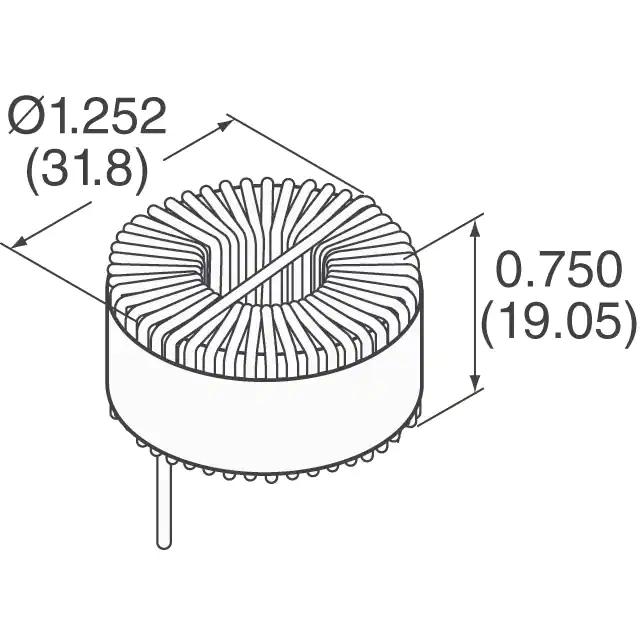

Height - Seated (Max):

0.750" (19.05mm)

Type:

Toroidal

Inductance:

500 µH

Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX02-12236. It is assigned with possible HTSUS value of 8504.50.4000. 100 khz is its inductance frequency value. The product has -20°c ~ 105°c operating temperature range. Moreover, the product comes in [Package/ Case]. Furthermore, the product is shielded with unshielded. It allows DC resistance of 200mohm max. It has the maximum seated height of 0.750" (19.05mm) It comes in toroidal configuration. The product has a 500 µh inductance value. It is shipped in bulk. The product's diameters include 1.224" dia (31.08mm). It is made from durable iron powder. Additionally, the product's output is 2.6 a Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product pfc, is a highly preferred choice for users. The product is designated with the ear99 code number

Multiple Devices 08/Mar/2018(PCN Obsolescence/ EOL)

CTX02-12236(Datasheets)

PFC Appl Notes(Mfg Application Notes)
