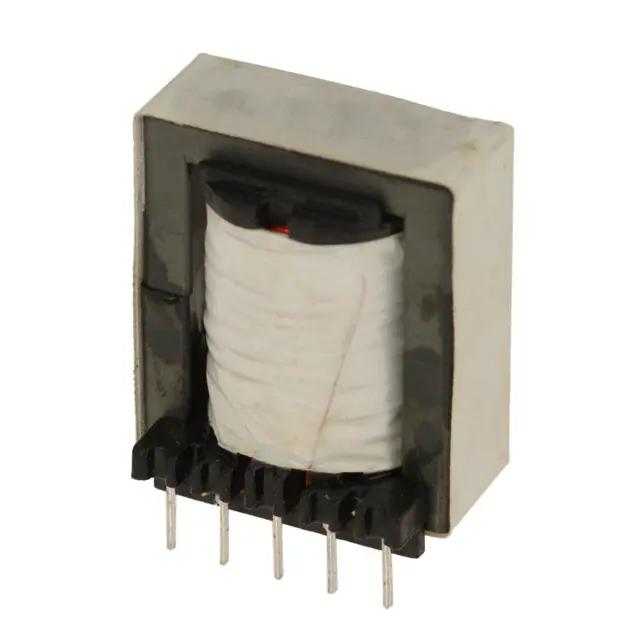

Eaton - Electronics Division CTX16-15954

CTX16-15954 Eaton - Electronics Division
CTX16-15954
Eaton - Electronics Division

Product Information

Ratings:
-
HTSUS:
8504.50.4000
RoHS Status:
RoHS Compliant
Inductance Frequency - Test:
10 kHz
Operating Temperature:
-20°C ~ 105°C
Package / Case:
Radial, Vertical, 10 Leads
Tolerance:
-
Shielding:
Unshielded
DC Resistance (DCR):
212mOhm Max
Height - Seated (Max):
1.417" (36.00mm)
Type:
Toroidal
Inductance:
1 mH
Package:
Bulk
Size / Dimension:
1.181" L x 0.945" W (30.00mm x 24.00mm)
Current - Saturation (Isat):
-
Material - Core:
Ferrite
Current Rating (Amps):
3.1 A
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Frequency - Self Resonant:
-
Mounting Type:
Through Hole
Series:
PFC
Supplier Device Package:
-
Q @ Freq:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is CTX16-15954. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs compliant. 10 khz is its inductance frequency value. The product has -20°c ~ 105°c operating temperature range. Moreover, the product comes in [Package/ Case]. Furthermore, the product is shielded with unshielded. It allows DC resistance of 212mohm max. It has the maximum seated height of 1.417" (36.00mm) It comes in toroidal configuration. The product has a 1 mh inductance value. It is shipped in bulk. The product's diameters include 1.181" l x 0.945" w (30.00mm x 24.00mm). It is made from durable ferrite. Additionally, the product's output is 3.1 a Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. The product pfc, is a highly preferred choice for users. The product is designated with the ear99 code number

pdf icon
Additional Assembly Site 6/Nov/2015(PCN Assembly/Origin)
pdf icon
CTX16-15954(Datasheets)
pdf icon
PFC Appl Notes(Mfg Application Notes)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)
