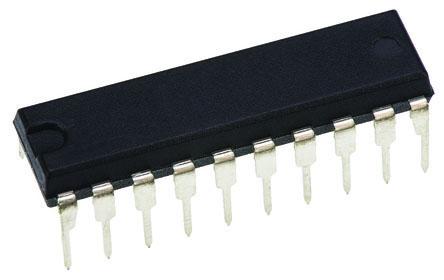

This is Octal D Type Flip Flop IC 20-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is CD74ACT273EE4. The given dimensions of the product include 24.33 x 6.35 x 4.57mm. Furthermore, the product is 6.35mm wide. It carries single ended input type. It has a maximum operating temperature of +125 °c. Its accurate length is 24.33mm. The product is available in through hole configuration. In addition, the height is 4.57mm. Whereas, the minimum operating temperature of the product is -55 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -55°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in d-type configuration. Carries 10 pf input capacitance. It performs basic function of master reset. The product consists of 8 bits per element. Furthermore, it has anon-inverted output. The maximum propagation delay at given voltage includes 13.5ns @ 5v, 50pf. A product with a trigger type positive edge. Current - Quiescent of 8 µa. It is shipped in tube. The product boasts a clock frequency of 85 mhz. It has a long 6 weeks standard lead time. The product 74act, is a highly preferred choice for users. 20-pdip is the supplier device package value. It has optimum voltage supply of 4.5v ~ 5.5v. The high and low output current of the product is 24ma, 24ma. It carries 1 elements. The product is designated with the ear99 code number
For more information please check the datasheets.
