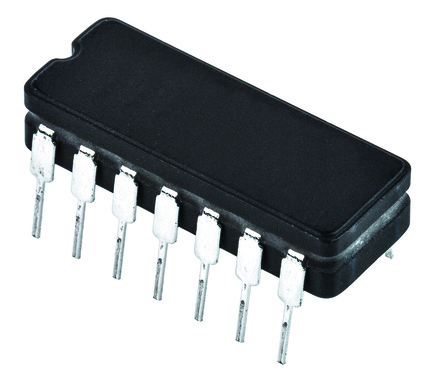

Texas Instruments SN54LS74AJ Dual D Type Flip Flop IC, TTL, 4.5 → 5.5 V, 14-Pin CDIP

SN54LS74AJ Texas Instruments Dual D Type Flip Flop IC, TTL, 4.5 → 5.5 V, 14-Pin CDIP
Texas Instruments

Product Information

Polarity:
Inverting, Non-Inverting
Dimensions:
19.94 x 7.62 x 3.56mm
Logic Family:
LS
Width:
7.62mm
Input Type:
TTL
Maximum Propagation Delay Time @ Maximum CL:
13.5 ns @ 15 pF
Minimum Operating Supply Voltage:
4.5 V
Output Type:
TTL
Package Type:
CDIP
Number of Elements per Chip:
2
Maximum Operating Temperature:
+125 °C
Output Signal Type:
Differential
Length:
19.94mm
Pin Count:
14
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Through Hole
Logic Function:
D Type
Height:
3.56mm
Minimum Operating Temperature:
-55 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
15pF
RoHS Status:
ROHS3 Compliant
Series:
*
Package:
Tube
Moisture Sensitivity Level (MSL):
Not Applicable
RoHs Compliant
Checking for live stock

This is Dual D Type Flip Flop IC TTL 4.5 → 5.5 V 14-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is SN54LS74AJ. The given dimensions of the product include 19.94 x 7.62 x 3.56mm. Furthermore, the product is 7.62mm wide. It carries ttl input type. Furthermore, it has attl output. It has a maximum operating temperature of +125 °c. Its accurate length is 19.94mm. The product is available in through hole configuration. In addition, the height is 3.56mm. Whereas, the minimum operating temperature of the product is -55 °c. The product is rohs3 compliant. It is shipped in tube. Its typical moisture sensitivity level is not applicable.
