Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
4.2 V
Minimum Operating Temperature:
-40 °C
Logic Function:
D Type
Logic Family:
ECL
Height:
1.5mm
Width:
4mm
Length:
5mm

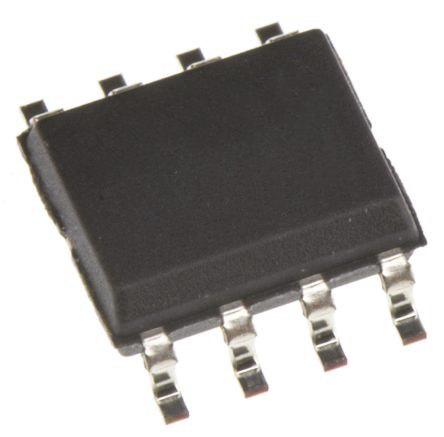

Package Type:
SOIC
Number of Elements per Chip:
1
Input Type:
ECL
Maximum Operating Supply Voltage:
5.7 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
D-Type
Function:
Set(Preset) and Reset
Number of Bits per Element:
1
REACH Status:
REACH Unaffected
Output Type:
Complementary
Max Propagation Delay @ V, Max CL:
-
Trigger Type:
Positive Edge
Current - Quiescent (Iq):
32 mA
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Clock Frequency:
2.8 GHz
standardLeadTime:
28 Weeks
Mounting Type:
Surface Mount
Series:
100EL
Supplier Device Package:
8-SOIC
Voltage - Supply:
-4.2V ~ -5.7V
Current - Output High, Low:
-
Number of Elements:
1
Base Product Number:
MC100EL31
ECCN:
EAR99
