Dimensions:
8.75 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
36 ns @ 50 pF
Minimum Operating Supply Voltage:
4.5 V
Minimum Operating Temperature:
-55 °C
Logic Function:
D Type
Propagation Delay Test Condition:
50pF
Output Type:
TTL
Height:
1.5mm
Width:
4mm
Length:
8.75mm

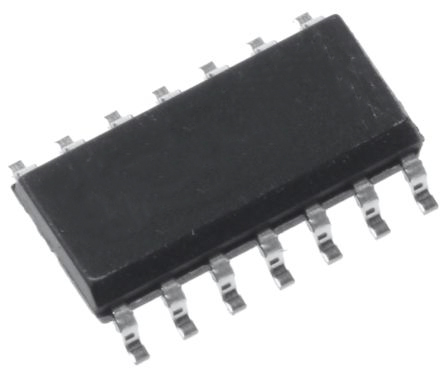

Package Type:
SOIC
Logic Family:
HCT
Input Type:
CMOS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+125 °C
Pin Count:
14
Number of Elements per Chip:
2
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TA)
Package / Case:
14-SOIC (0.154", 3.90mm Width)
Type:
D-Type
Input Capacitance:
10 pF
Function:
Set(Preset) and Reset
Number of Bits per Element:
1
REACH Status:
REACH Unaffected
Output Type:
Complementary
Max Propagation Delay @ V, Max CL:
24ns @ 5V, 50pF
Trigger Type:
Positive Edge
Current - Quiescent (Iq):
2 µA
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Clock Frequency:
30 MHz
standardLeadTime:
32 Weeks
Mounting Type:
Surface Mount
Series:
74HCT
Supplier Device Package:
14-SOIC
Voltage - Supply:
4.5V ~ 5.5V
Current - Output High, Low:
4mA, 4mA
Number of Elements:
2
Base Product Number:
74HCT74
ECCN:
EAR99
