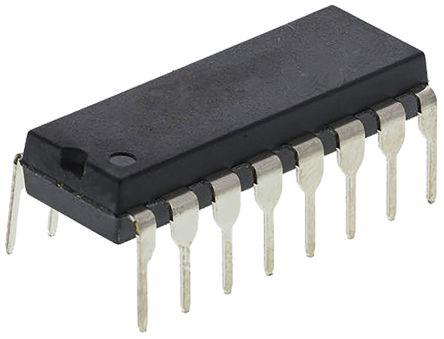

Texas Instruments CD74HCT175EE4 Quad D Type Flip Flop IC, 4.5 → 5.5 V, 16-Pin PDIP

CD74HCT175EE4 Texas Instruments Quad D Type Flip Flop IC, 4.5 → 5.5 V, 16-Pin PDIP
CD74HCT175EE4
Texas Instruments

Product Information

Polarity:
Inverting, Non-Inverting
Dimensions:
19.3 x 6.35 x 4.57mm
Logic Family:
HCT
Width:
6.35mm
Input Type:
Single Ended
Maximum Propagation Delay Time @ Maximum CL:
33 ns @ 4.5 V
Minimum Operating Supply Voltage:
4.5 V
Package Type:
PDIP
Number of Elements per Chip:
4
Maximum Operating Temperature:
+125 °C
Set/Reset:
Master Reset
Output Signal Type:
Differential
Length:
19.3mm
Pin Count:
16
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Through Hole
Logic Function:
D Type
Height:
4.57mm
Minimum Operating Temperature:
-55 °C
Triggering Type:
Positive Edge
Propagation Delay Test Condition:
50pF
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TA)
Package / Case:
16-DIP (0.300", 7.62mm)
Type:
D-Type
Input Capacitance:
10 pF
Function:
Master Reset
Number of Bits per Element:
4
Output Type:
Complementary
Max Propagation Delay @ V, Max CL:
33ns @ 4.5V, 50pF
Trigger Type:
Positive Edge
Current - Quiescent (Iq):
8 µA
Package:
Tube
Clock Frequency:
25 MHz
standardLeadTime:
6 Weeks
Mounting Type:
Through Hole
Series:
74HCT
Supplier Device Package:
16-PDIP
Voltage - Supply:
4.5V ~ 5.5V
Current - Output High, Low:
4mA, 4mA
Number of Elements:
1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Quad D Type Flip Flop IC 4.5 → 5.5 V 16-Pin PDIP manufactured by Texas Instruments. The manufacturer part number is CD74HCT175EE4. The given dimensions of the product include 19.3 x 6.35 x 4.57mm. Furthermore, the product is 6.35mm wide. It carries single ended input type. It has a maximum operating temperature of +125 °c. Its accurate length is 19.3mm. The product is available in through hole configuration. In addition, the height is 4.57mm. Whereas, the minimum operating temperature of the product is -55 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -55°c ~ 125°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. It comes in d-type configuration. Carries 10 pf input capacitance. It performs basic function of master reset. The product consists of 4 bits per element. Furthermore, it has acomplementary output. The maximum propagation delay at given voltage includes 33ns @ 4.5v, 50pf. A product with a trigger type positive edge. Current - Quiescent of 8 µa. It is shipped in tube. The product boasts a clock frequency of 25 mhz. It has a long 6 weeks standard lead time. The product 74hct, is a highly preferred choice for users. 16-pdip is the supplier device package value. It has optimum voltage supply of 4.5v ~ 5.5v. The high and low output current of the product is 4ma, 4ma. It carries 1 elements. The product is designated with the ear99 code number
