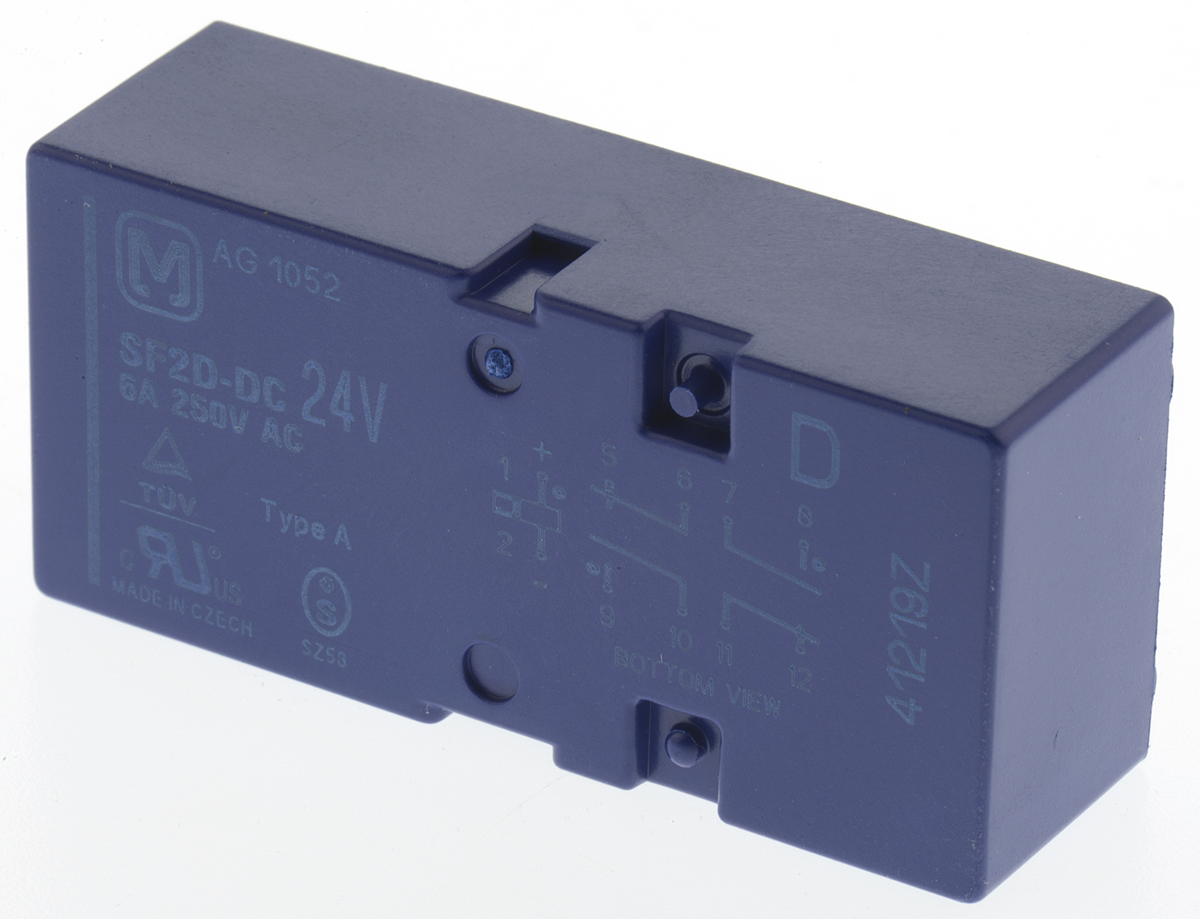

Panasonic DPDT PCB Mount Non-Latching Relay, 24V dc Coil, 6 A

SF2D24 Panasonic DPDT PCB Mount Non-Latching Relay, 24V dc Coil, 6 A
SF2D24
Panasonic

Product Information

Coil Voltage:
24V dc
Coil Resistance:
1.152 kΩ
Life:
100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Coil Power:
500mW
Maximum Switching Voltage DC:
30V
Maximum Switching Power DC:
180 W
Isolation Coil To Contact:
2.5kV rms
Maximum Operating Temperature:
+70°C
Terminal Type:
Through Hole
Maximum Switching Current AC:
6 A
Switching Current:
6A
Contact Configuration:
DPDT
Depth:
25mm
Mounting Type:
PCB Mount
Series:
SF2D
Length:
53.3mm
Height:
16mm
Maximum Switching Current DC:
6 A
Maximum Switching Voltage AC:
440V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1.5 kVA
Number of Poles:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

This is DPDT PCB Mount Non-Latching Relay 24V dc Coil 6 A manufactured by Panasonic. The manufacturer part number is SF2D24. The coil voltage of the product is 24v dc. It holds up to 1.152 kω coil resistance. Robust coil power of 500mw. It has a maximum operating temperature of +70°c. The terminal is a through hole type. The product comes in 25mm depth. The product is available in pcb mount configuration. The product sf2d, is a highly preferred choice for users. Its accurate length is 53.3mm. In addition, the height is 16mm. Whereas, the minimum operating temperature of the product is -40°c. It has equipped with 2 poles. The product is made from sturdy gold plated materials.

pdf icon
SF2D Relay Data Sheet(Technical Reference)
