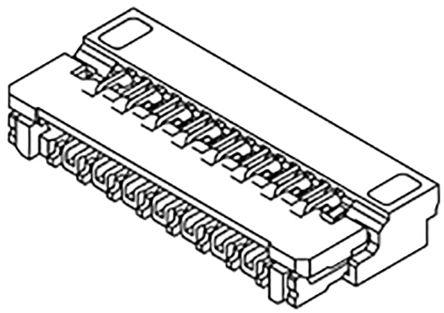

Molex 503566 Series 0.3mm Pitch 17 Way SMT Female FPC Connector

503566-1700-TR750 Molex 503566 Series 0.3mm Pitch 17 Way SMT Female FPC Connector
503566-1700-TR750 Molex 503566 Series 0.3mm Pitch 17 Way SMT Female FPC Connector
Molex

Product Information

Number of Contacts:
17
Current Rating:
200mA
Minimum Operating Temperature:
-40°C
Mounting Type:
Surface Mount
Voltage Rating:
50 V
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Contact Position:
Bottom
Housing Material:
Polyester Alloy
Number of Rows:
1
Contact Plating:
Gold over Nickel
Pitch:
0.3mm
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+105°C
Series Number:
503566
RoHs Compliant
Checking for live stock

This is 503566 Series 0.3mm Pitch 17 Way SMT Female FPC Connector manufactured by Molex. The manufacturer part number is 503566-1700-TR750. The product contains 17 contacts. The product has a current rating of 200ma. Whereas, the minimum operating temperature of the product is -40°c. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v voltage rating. In addition, female is the available "Gender" of the product. The product also features robust polyester alloy housing material. It comes in 1 of rows. Moreover, the product is 0.3mm The product is made from sturdy phosphor bronze materials. It has a maximum operating temperature of +105°c.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 503566-1700-TR750 on website for other similar products.
We accept all major payment methods for all products including ET17003621. Please check your shopping cart at the time of order.
You can order Molex brand products with 503566-1700-TR750 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FPC Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 503566 Series 0.3mm Pitch 17 Way SMT Female FPC Connector. You can also check on our website or by contacting our customer support team for further order details on Molex 503566 Series 0.3mm Pitch 17 Way SMT Female FPC Connector.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17003621 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number 503566-1700-TR750.
Yes. You can also search 503566-1700-TR750 on website for other similar products.
Yes. We ship 503566-1700-TR750 Internationally to many countries around the world.
