Maximum Frequency Range Square Pulse and Arbitrary Waveform:
16MHz
Dimensions:
335 x 350 x 130mm
Width:
350mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
16MHz
Minimum Frequency Range Sinewave:
0.1MHz
Model Number p:
TGA1244
Maximum Frequency Range Triangle/Saw:
100kHz
Internal and External Amplitude Modulation:
Yes
Maximum Operating Temperature:
+40°C
Minimum Frequency Range Triangle/Saw:
0.1MHz
Output Amplitude:
20V Pk-Pk
Minimum Operating Temperature:
+5°C
Length:
335mm
Interface Type:
GPIB, RS232
Time Base Accuracy:
±10ppm
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
1 MHz
Input Impedance:
10 kΩ
Digital Frequency:
Yes
Weight:
7.2kg
Plug Type:
Type C - European Plug, Type G - British 3-pin
Frequency Range Square Pulse and Arbitrary Waveform:
1 mHz → 16 MHz
Height:
130mm
Internal Linear and Log Sweep:
Yes
Output Impedance:
50 Ω, 600 Ω
Digital Amplitude and Offset:
Yes

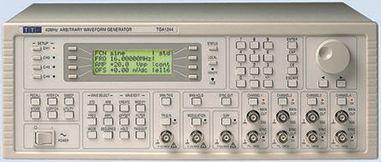

This is Function Generator 16MHz GPIB RS232 manufactured by Aim-TTi. The manufacturer part number is TGA1244. The given dimensions of the product include 335 x 350 x 130mm. Furthermore, the product is 350mm wide. It has a maximum operating temperature of +40°c. Whereas, the minimum operating temperature of the product is +5°c. Its accurate length is 335mm. The typical product's weight is 7.2kg. In addition, the height is 130mm.
