Maximum Frequency Range Square Pulse and Arbitrary Waveform:
30MHz
Dimensions:
272.3 x 212.8 x 88.3mm
FM Modulation:
Yes
Width:
212.8mm
Variable Sweep:
Yes
Maximum Frequency Range Sinewave:
30MHz
Minimum Frequency Range Sinewave:
1µHz

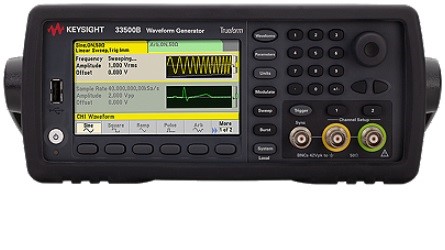

Model Number p:
33519B
Maximum Frequency Range Triangle/Saw:
20kHz
Number of Channels:
1
Internal and External Amplitude Modulation:
Yes
Maximum Operating Temperature:
+55°C
Minimum Frequency Range Triangle/Saw:
1µHz
Output Amplitude:
20V Pk-Pk
Minimum Operating Temperature:
0°C
Operating Temperature Range:
0 → +55 °C
Length:
272.3mm
Interface Type:
Ethernet, GPIB, LAN, USB
Time Base Accuracy:
±0.1ppm
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz
Input Impedance:
5 kΩ
Digital Frequency:
Yes
Weight:
3.3kg
Frequency Range Square Pulse and Arbitrary Waveform:
1 μHz → 30 MHz
Height:
88.3mm
Internal Linear and Log Sweep:
Yes
Output Impedance:
50Ω
Digital Amplitude and Offset:
Yes
