Width:
293mm
Height:
107mm
Length:
266mm
Weight:
2.5kg
Plug Type:
UK
Calibrated:
RSCAL
Dimensions:
266 x 293 x 107mm

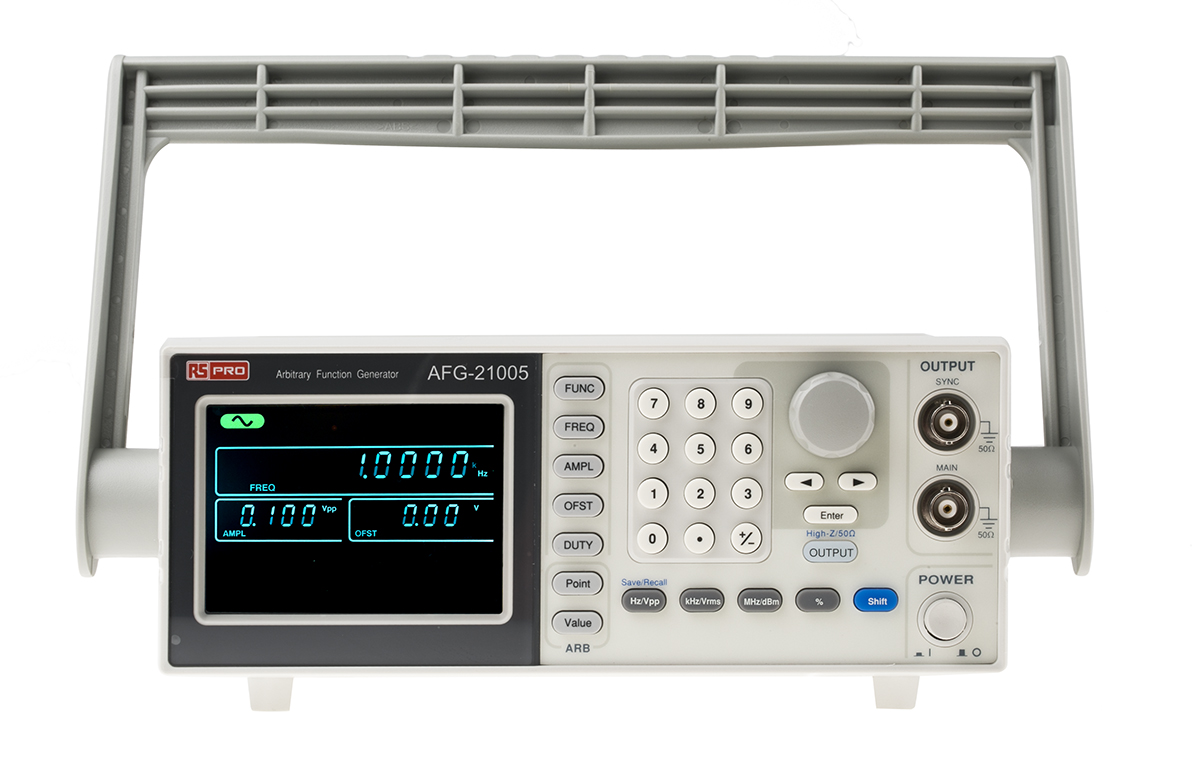

Model Number:
AFG21005
FM Modulation:
Yes
Interface Type:
USB
Variable Sweep:
Yes
Input Impedance:
1 kO
Output Amplitude:
1 mV Pk-Pk → 10 V Pk-Pk, 2 mV Pk-Pk → 20 V Pk-Pk (Open Circuit)
Output Impedance:
>300 (Output Disabled) kΩ, 50 (Fixed) Ω
Digital Frequency:
Yes
Time Base Accuracy:
±20ppm
Digital Amplitude and Offset:
Yes
Internal Linear and Log Sweep:
Yes
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
0°C
Maximum Frequency Range Sinewave:
5MHz
Minimum Frequency Range Sinewave:
0.1Hz
Maximum Frequency Range Triangle/Saw:
1MHz
Minimum Frequency Range Triangle/Saw:
0.1Hz
Internal and External Amplitude Modulation:
Yes
Frequency Range Square Pulse and Arbitrary Waveform:
0.1 Hz → 5 MHz
Maximum Frequency Range Square Pulse and Arbitrary Waveform:
5MHz
Minimum Frequency Range Square Pulse and Arbitrary Waveform:
0.1 Hz
