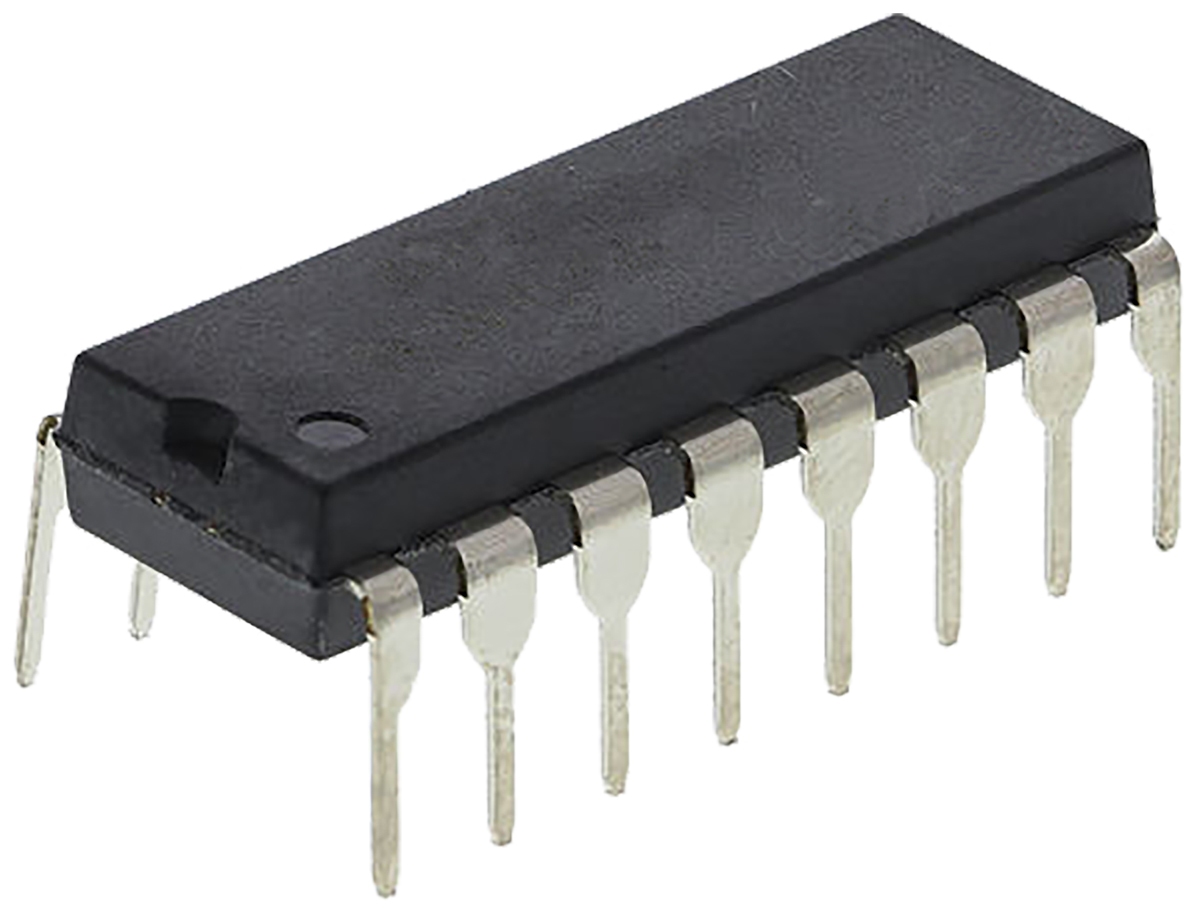

Texas Instruments UC3706N MOSFET Gate Driver 2, 1.5 A 16-Pin 40 V, PDIP

UC3706N Texas Instruments MOSFET Gate Driver 2, 1.5 A 16-Pin 40 V, PDIP
UC3706N
UC3706N Texas Instruments MOSFET Gate Driver 2, 1.5 A 16-Pin 40 V, PDIP
Texas Instruments

Product Information

Width:
6.35 mm
Height:
4.57mm
Length:
19.3mm
Series:
UC3706
Fall Time:
80ns
Pin Count:
16
Rise Time:
110ns
Mount Type:
Through Hole
Driver Type:
MOSFET
Package Type:
PDIP
Product Type:
MOSFET
Output Current:
1.5A
Number of Drivers:
2
Number of Outputs:
2
Automotive Standard:
No
Standards/Approvals:
No
Maximum Supply Voltage:
40V
Minimum Supply Voltage:
40V
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
0°C
RoHs Compliant
6 - In Stock

In Stock

Each

Quantity
Unit Price (ex VAT)
Price
1
£ 11.06
£ 11.06
25
£ 8.86
£ 221.50
100
£ 8.24
£ 824.00
Mfr Part No:
UC3706N
Seller:
Texas Instruments
Origin:
Warranty:
Manufacturer
Data Code:
ET100001650
Order Today!
From: United Kingdom
Est Ship Date: 15 Jul, 2026
Est Fastest Delivery: 16 Jul, 2026

This is MOSFET Gate Driver 2 1.5 A 16-Pin 40 V PDIP manufactured by Texas Instruments. The manufacturer part number is UC3706N. Furthermore, the product is 6.35 mm wide. In addition, the height is 4.57mm. Its accurate length is 19.3mm. The product uc3706, is a highly preferred choice for users. Number of Drivers equals 2. Additionally, the product is supplied with 2 outputs. It has a maximum operating temperature of 70°c. Whereas, the minimum operating temperature of the product is 0°c.
