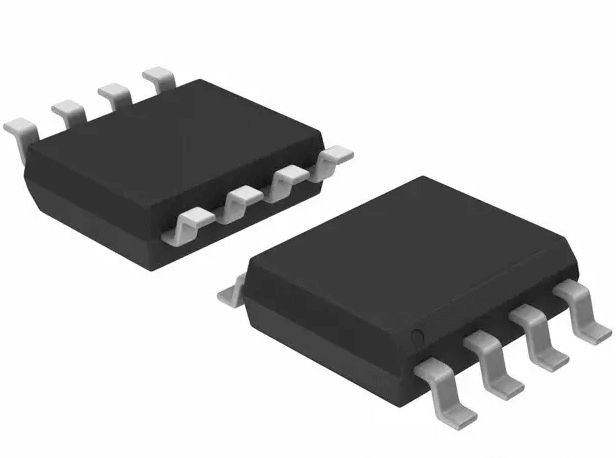

onsemi NCV57080BDR2G, 6.5 A, 22V 8-Pin, SOIC

NCV57080BDR2G onsemi , 6.5 A, 22V 8-Pin, SOIC
NCV57080BDR2G
onsemi

Product Information

Output Current:
6.5 A
Package Type:
SOIC
Supply Voltage:
22V
Pin Count:
8
Fall Time:
13ns
Voltage - Output Supply:
0V ~ 32V
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Propagation Delay tpLH / tpHL (Max):
90ns, 90ns
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ):
13ns, 13ns
REACH Status:
REACH Unaffected
Number of Channels:
1
Current - Output High, Low:
6.5A, 6.5A
Package:
Tape & Reel (TR)
Pulse Width Distortion (Max):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Common Mode Transient Immunity (Min):
100kV/µs
Voltage - Forward (Vf) (Typ):
-
standardLeadTime:
76 Weeks
Voltage - Isolation:
3750Vrms
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q100
Supplier Device Package:
8-SOIC
Current - Peak Output:
6.5A
Technology:
Capacitive Coupling
Base Product Number:
NCV57080
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 6.5 A 22V 8-Pin SOIC manufactured by onsemi. The manufacturer part number is NCV57080BDR2G. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It has a maximum propagation delay of 90ns, 90ns. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. The typical rise and fall time of the product is 13ns, 13ns. In addition, it is reach unaffected. It is supplied with 1 channels. The high and low output current of the product is 6.5a, 6.5a. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). Allows a 100kv/µs of minimum common mode transient immunity. It has a long 76 weeks standard lead time. 3750vrms of isolation voltage. The product is available in surface mount configuration. The product automotive, aec-q100, is a highly preferred choice for users. 8-soic is the supplier device package value. This product use capacitive coupling technology. Moreover, it corresponds to ncv57080, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet - NCV57080BDR2G(Technical Reference)
pdf icon
Process Change 11/Oct/2021(PCN Assembly/Origin)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
