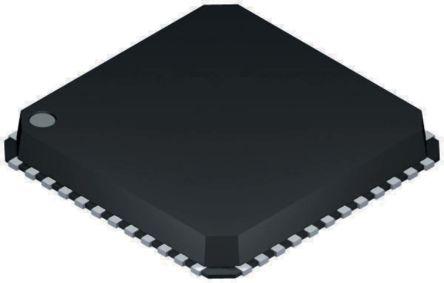

Analog Devices AD9233BCPZ-80, 12-bit Parallel ADC Differential, Single Ended Input, 48-Pin LFCSP

AD9233BCPZ-80 Analog Devices , 12-bit Parallel ADC Differential, Single Ended Input, 48-Pin LFCSP
AD9233BCPZ-80 Analog Devices , 12-bit Parallel ADC Differential, Single Ended Input, 48-Pin LFCSP
Analog Devices

Product Information

Number of ADCs:
1
Number of Input Channels:
1
Integral Nonlinearity Error:
±1.2LSB
Digital Interface Type:
Parallel
Dimensions:
7 x 6.75 x 0.95mm
Mounting Type:
Surface Mount
Input Signal Type:
Differential, Single Ended
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Typical Single Supply Voltage:
1.8 V
Height:
0.95mm
Width:
6.75mm
Length:
7mm
Package Type:
LFCSP
Architecture:
Pipelined
Input Type:
Voltage
Sampling Rate:
80Msps
Maximum Operating Temperature:
+85 °C
Resolution:
12-bit
Pin Count:
48
RoHs Compliant
Checking for live stock

This is 12-bit Parallel ADC Differential Single Ended Input 48-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is AD9233BCPZ-80. The given dimensions of the product include 7 x 6.75 x 0.95mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 0.95mm. Furthermore, the product is 6.75mm wide. Its accurate length is 7mm. The product has been designed as pipelined. It carries voltage input type. It has a maximum operating temperature of +85 °c. Features 12-bit resolution.

pdf icon
12-Bit 1.8V ADC(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
