Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
118.1µin (3.00µm)
Number of Positions:
24
Overall Contact Length:
-
Insulation Height:
0.234" (5.95mm)
Voltage Rating:
800V
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
7.55mm, 7.95mm, 10.1mm, 11.1mm, 13.65mm, 15.1mm
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
Package:
Tube
Row Spacing - Mating:
0.079" (2.00mm)

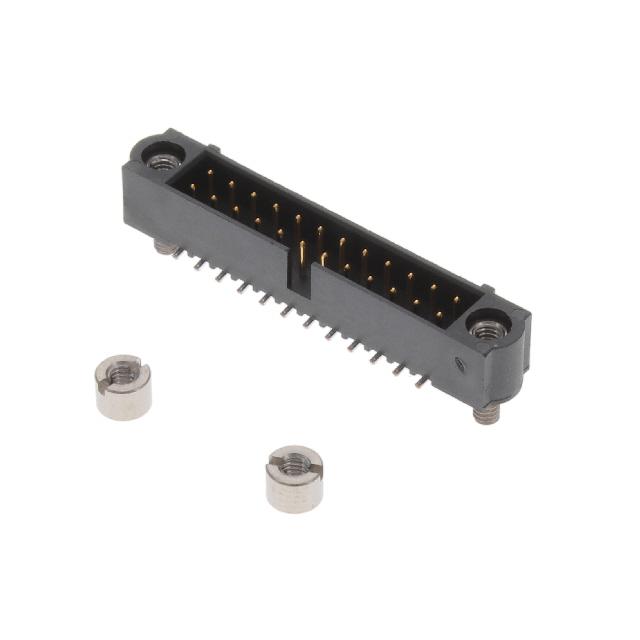

Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Threaded
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
2.2A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Mounting Type:
Surface Mount
Series:
Datamate J-Tek
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
M80-512
ECCN:
EAR99
