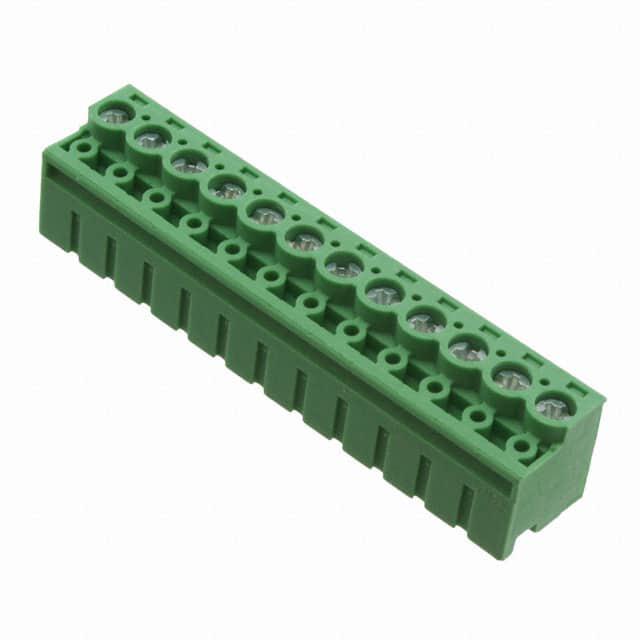

This is manufactured by Phoenix Contact. The manufacturer part number is 1755680. The product is made from highly stable and reliable polyamide, tin. The product has a current rating of 10a. Moreover, the product has a nominal 630 v voltage rating. In addition, female is the available "Gender" of the product. Moreover, the product is 5mm The product pt 1.5/12-ph-5.0, is a highly preferred choice for users. The product contains 12 contacts. It comes in plug configuration. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. The typical length of the wire strip is 6mm. It comes in plug for unshrouded header configuration. The product carries possible position value of 12. A 0.2-2.5mm² of wire gauge. It also a 90° plug wire entry. 0.518" (13.15mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 10a. While 14-28 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.35-0.4 nm (3.1-3.5 lb-in). It has a long 24 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon pt, is a highly preferred choice for users. It has 12 positions each level. The typical current includes 10 a. Moreover, the product is 0.197" (5.00mm) The product carries 1 levels. The product is designated with the ear99 code number
For more information please check the datasheets.
