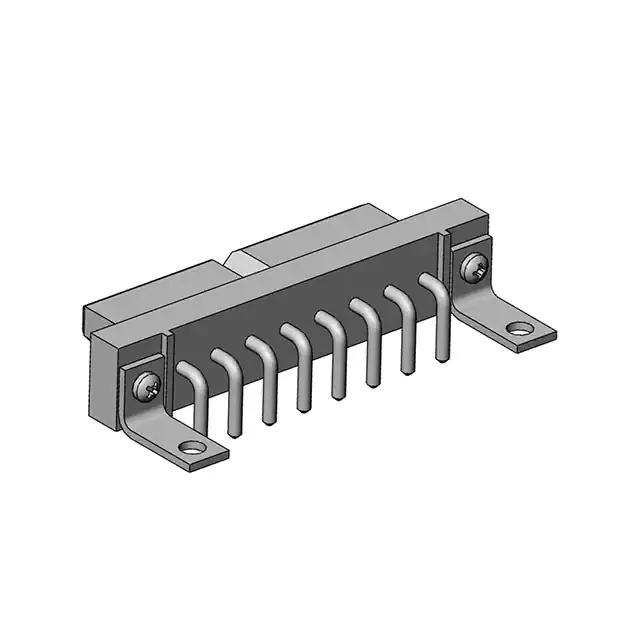

This is manufactured by Anderson Power Products, Inc.. The manufacturer part number is PM108FRAOHB. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 180°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 8. 0.150" (3.81mm) is the given possible contact length (post) values. 0.410" (10.41mm) of insulation height. Moreover, the product has a nominal 600v voltage rating. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical circular shape. It has a robust polyphenylene sulfide (pps) insulation material. It is shipped in box. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. The product features solder termination style. Additionally, the product's output is 30a It has 0.197" (5.00mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in through hole, right angle configuration. The product powermod®, is a highly preferred choice for users. It has typical contact type of female socket, power. The product is made from sturdy beryllium copper materials. Moreover, it corresponds to pm108frao, a base product number of the product. The product is designated with the ear99 code number
For more information please check the datasheets.
