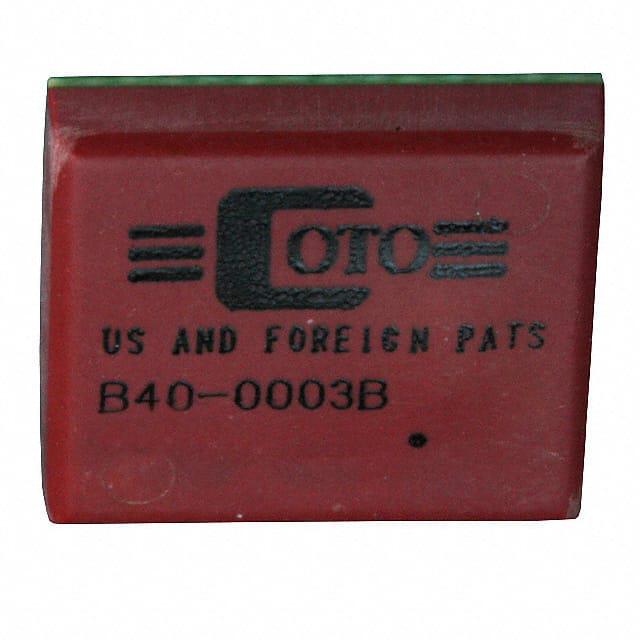

This is manufactured by Coto Technology. The manufacturer part number is B40-0003B. It is assigned with possible HTSUS value of 8536.41.0030. The product is rohs compliant. The coil voltage of the product is 5vdc. Moreover, it has bga terminal style. The product has -20°c ~ 85°c operating temperature range. It holds up to 166 ohms coil resistance. It has a coil current of 31.3 ma. The coil is a non latching type. The product's switching voltage is 125vac, 125vdc - max. In addition, it is reach unaffected. On the other hand, 3.8 vdc is the given crucial/must operating voltage. It is shipped in tube. It also has a spst-no (1 form a) x 4 contact form. Its typical moisture sensitivity level is 5a (24 hours). The operating time of the product is 0.1 ms. While the must release voltage is a 0.4 vdc. It has a contact current rating of 250 ma. The product is available in surface mount configuration. The product b40, is a highly preferred choice for users. While 0.03 ms is its release time. The product is designated with the ear99 code number
For more information please check the datasheets.
