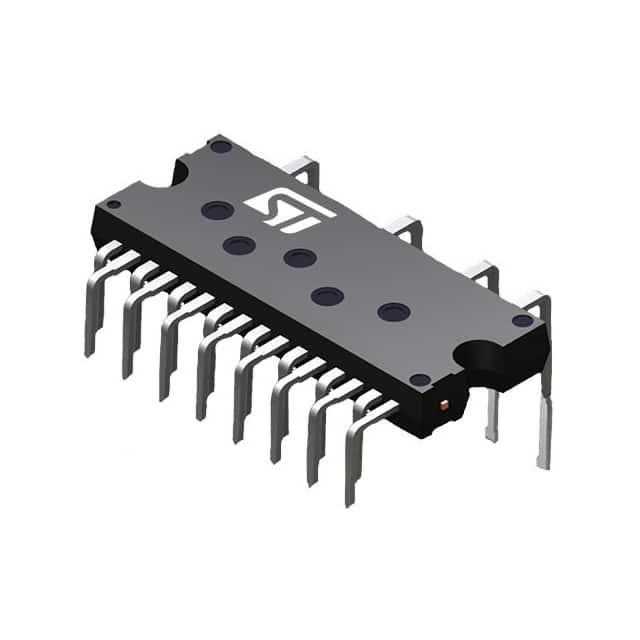

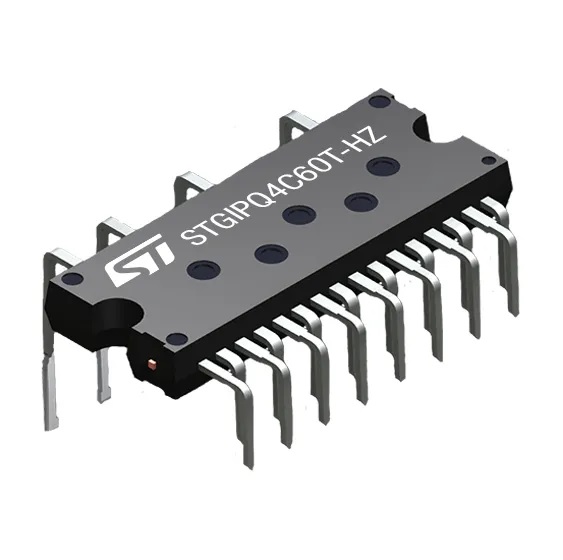

STMicroelectronics STGIPQ4C60T-HZ

STGIPQ4C60T-HZ STMicroelectronics
STGIPQ4C60T-HZ
STMicroelectronics

Product Information

Maximum Power Dissipation:
12.5 W
Maximum Collector Emitter Voltage:
600 V
Number of Transistors:
6
Maximum Continuous Collector Current:
6 A
Maximum Gate Emitter Voltage:
600V
Package Type:
N2DIP-26L type Z
Pin Count:
26
Transistor Configuration:
Series
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current:
6 A
Package / Case:
26-PowerDIP Module (0.846", 21.48mm)
Type:
IGBT
REACH Status:
REACH Unaffected
Configuration:
3 Phase Inverter
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Isolation:
1500Vrms
Mounting Type:
Through Hole
Series:
SLLIMM nano - 2nd
Voltage:
600 V
Base Product Number:
STGIPQ4
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is STGIPQ4C60T-HZ. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. Features a 6 a current in A. Moreover, the product comes in [Package/ Case]. It comes in igbt configuration. In addition, it is reach unaffected. The product is available in 3 phase inverter configuration. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). 1500vrms of isolation voltage. The product is available in through hole configuration. The product sllimm nano - 2nd, is a highly preferred choice for users. It carries a 600 v of voltage. Moreover, it corresponds to stgipq4, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet - STGIPQ4C60T-HZ(Technical Reference)
pdf icon
STGIPQ4C60T-HZ(Datasheets)
