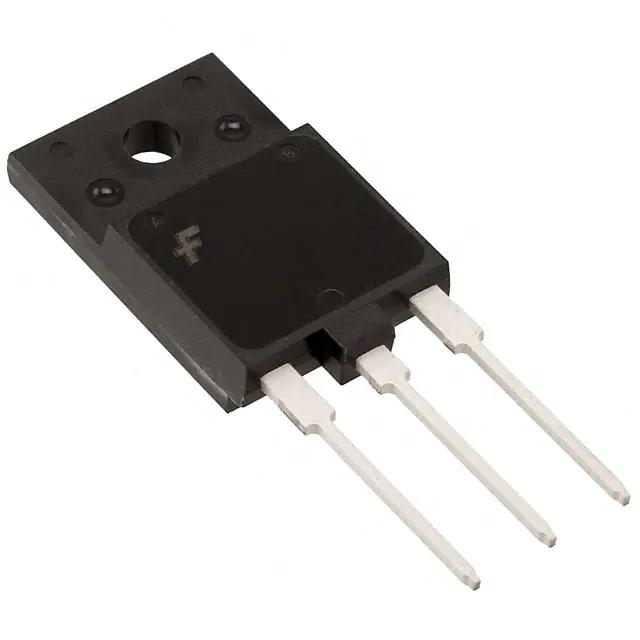

onsemi FGAF20N60SMD IGBT, 40 A 600 V, 3-Pin TO-3PF, Through Hole

FGAF20N60SMD onsemi IGBT, 40 A 600 V, 3-Pin TO-3PF, Through Hole
FGAF20N60SMD
FGAF20N60SMD
onsemi

Product Information

Dimensions:
15.7 x 3.2 x 26.7mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
75 W
Maximum Collector Emitter Voltage:
600 V
Channel Type:
N
Maximum Continuous Collector Current:
40 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
TO-3PF
Minimum Operating Temperature:
-55 °C
Switching Speed:
1MHz
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
40 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Switching Energy:
452µJ (on), 141µJ (off)
Vce(on) (Max) @ Vge, Ic:
1.7V @ 15V, 20A
Voltage - Collector Emitter Breakdown (Max):
600 V
Td (on/off) @ 25°C:
12ns/91ns
Operating Temperature:
-55°C ~ 175°C (TJ)
Input Type:
Standard
Package / Case:
TO-3P-3 Full Pack
Gate Charge:
64 nC
Reverse Recovery Time (trr):
26.7 ns
REACH Status:
REACH Unaffected
Test Condition:
400V, 20A, 10Ohm, 15V
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
IGBT Type:
Field Stop
Current - Collector Pulsed (Icm):
60 A
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-3PF
Power - Max:
75 W
Base Product Number:
FGAF20
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is IGBT 40 A 600 V 3-Pin TO-3PF Through Hole manufactured by onsemi. The manufacturer part number is FGAF20N60SMD. The given dimensions of the product include 15.7 x 3.2 x 26.7mm. The product is available in through hole configuration. The product is available in [Cannel Type] channel. Whereas, the minimum operating temperature of the product is -55 °c. It has a maximum operating temperature of +175 °c. The maximum collector current includes 40 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 1.7v @ 15v, 20a. The maximum collector emitter breakdown voltage of the product is 600 v. The product has -55°c ~ 175°c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in [Package/ Case]. It has a trr (reverse recovery time) of 26.7 ns. In addition, it is reach unaffected. Test condition included 400v, 20a, 10ohm, 15v. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT field stop type. to-3pf is the supplier device package value. The maximum power of the product is 75 w. Moreover, it corresponds to fgaf20, a base product number of the product. The product is designated with the ear99 code number
