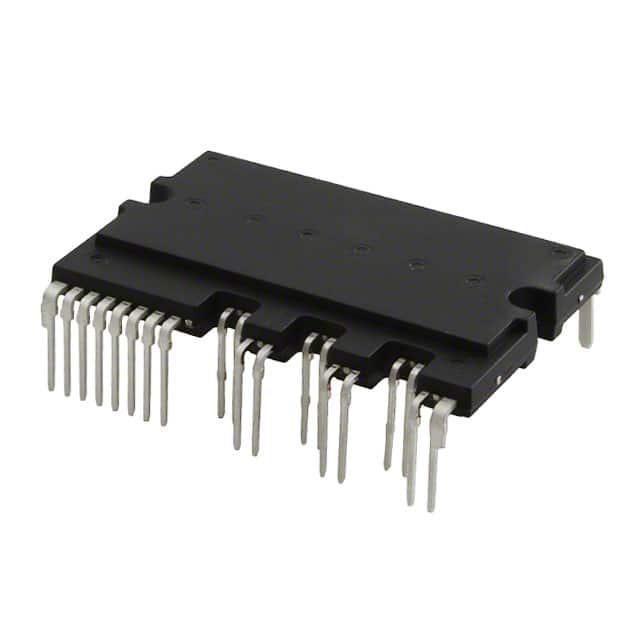

onsemi FSBF15CH60BT IGBT Module, 15 A 600 V, 27-Pin SPM27 JA, Through Hole

Enrgtech Part No: ET21470729
|
Manufacturer Part No:
FSBF15CH60BT
|
Manufacturer: onsemi

FSBF15CH60BT onsemi IGBT Module, 15 A 600 V, 27-Pin SPM27 JA, Through Hole

FSBF15CH60BT

FSBF15CH60BT onsemi IGBT Module, 15 A 600 V, 27-Pin SPM27 JA, Through Hole

onsemi

(0)

Product Information

Dimensions:

44 x 26.8 x 5.5mm

Mounting Type:

Through Hole

Maximum Power Dissipation:

25 W

Maximum Collector Emitter Voltage:

600 V

Channel Type:

N

Maximum Continuous Collector Current:

15 A

Package Type:

SPM27 JA

Minimum Operating Temperature:

-40 °C

Switching Speed:

20kHz

Maximum Operating Temperature:

+150 °C

Pin Count:

27

Voltage - Isolation:

2500Vrms

RoHs Compliant

Checking for live stock

This is IGBT Module 15 A 600 V 27-Pin SPM27 JA Through Hole manufactured by onsemi. The manufacturer part number is FSBF15CH60BT. The given dimensions of the product include 44 x 26.8 x 5.5mm. The product is available in through hole configuration. The product is available in [Cannel Type] channel. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +150 °c. 2500vrms of isolation voltage. It is assigned with possible HTSUS value of 8541.29.0095. It is shipped in tube. The product motion spm® 3, is a highly preferred choice for users. In addition, it is reach unaffected. Its typical moisture sensitivity level is 1 (unlimited). Features a 15 a current in A. It carries a 600 v of voltage. Moreover, the product comes in [Package/ Case]. The product is available in 3 phase configuration. It comes in igbt configuration. Moreover, it corresponds to fsbf1, a base product number of the product. The product is designated with the ear99 code number

ESD Control Selection Guide V1(Technical Reference)

Smart Power Module SPM 27 pin(Technical Reference)

onsemi RoHS(Environmental Information)

Cancellation of PCN P578AAB 20/Apr/2016(PCN Assembly/Origin)

Multi Devices 09/Jun/2017(PCN Design/Specification)

Datasheet Chg 11/Mar2016(PCN Design/Specification)

Mult Devices EOL 126/Jul/2018(PCN Obsolescence/ EOL)

FSBF15CH60BT(Datasheets)

Tape Retract Pin 14/May/2008(PCN Packaging)

Tape and Box/Reel Barcode Update 07/Aug/2014(PCN Packaging)
