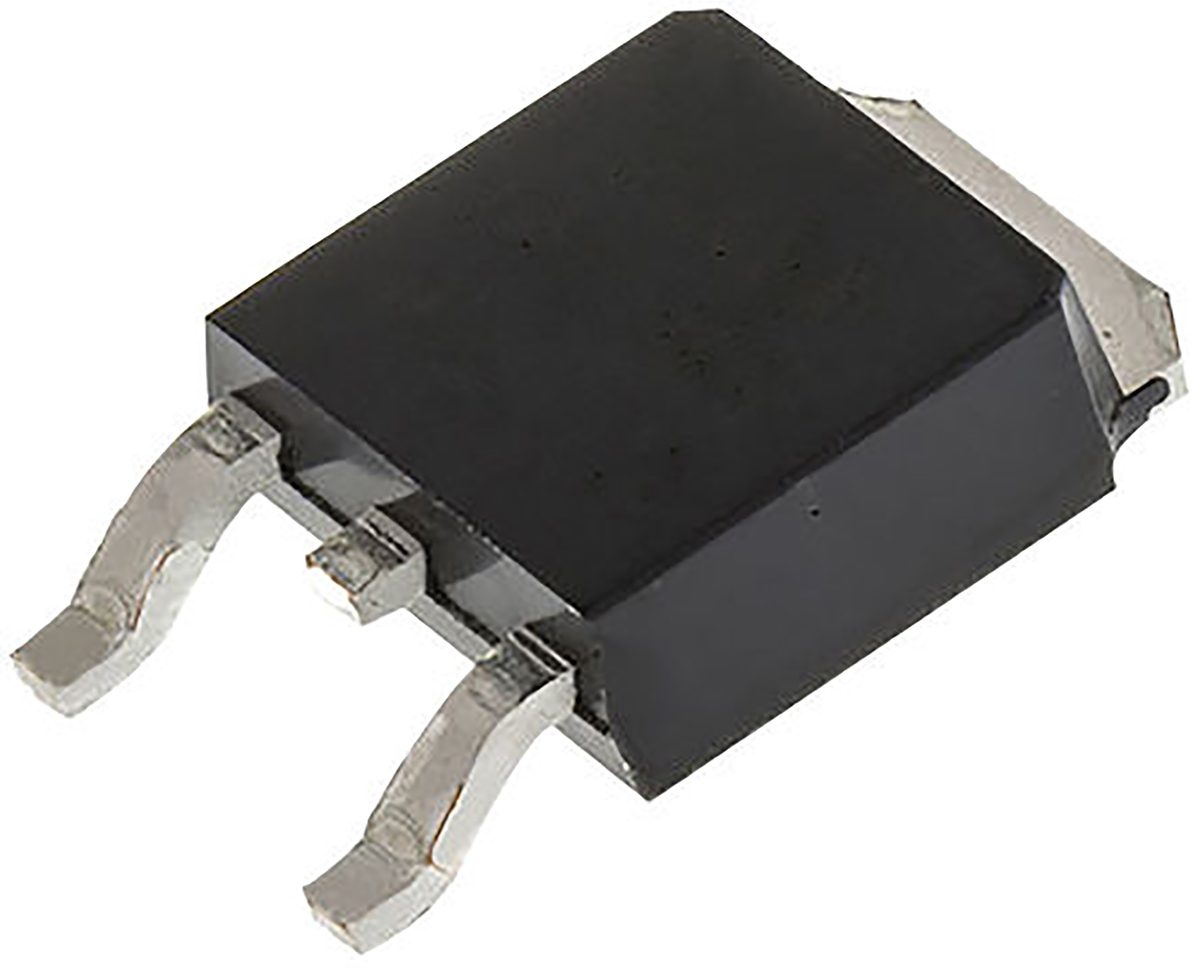

onsemi ISL9V2040D3ST IGBT, 10 A 450 V, 3-Pin DPAK (TO-252), Surface Mount

ISL9V2040D3ST onsemi IGBT, 10 A 450 V, 3-Pin DPAK (TO-252), Surface Mount
ISL9V2040D3ST
ISL9V2040D3ST
onsemi

Product Information

Dimensions:
6.73 x 6.22 x 2.39mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
130 W
Maximum Collector Emitter Voltage:
450 V
Channel Type:
N
Maximum Continuous Collector Current:
10 A
Maximum Gate Emitter Voltage:
±14V
Package Type:
DPAK (TO-252)
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
10 A
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Switching Energy:
-
Vce(on) (Max) @ Vge, Ic:
1.9V @ 4V, 6A
Voltage - Collector Emitter Breakdown (Max):
430 V
Td (on/off) @ 25°C:
-/3.64µs
Operating Temperature:
-40°C ~ 175°C (TJ)
Input Type:
Logic
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
Gate Charge:
12 nC
REACH Status:
REACH Unaffected
Test Condition:
300V, 1kOhm, 5V
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
53 Weeks
IGBT Type:
-
Mounting Type:
Surface Mount
Series:
EcoSPARK®
Supplier Device Package:
TO-252AA
Power - Max:
130 W
Base Product Number:
ISL9V2040
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is IGBT 10 A 450 V 3-Pin DPAK (TO-252) Surface Mount manufactured by onsemi. The manufacturer part number is ISL9V2040D3ST. The given dimensions of the product include 6.73 x 6.22 x 2.39mm. The product is available in surface mount configuration. The product is available in [Cannel Type] channel. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +175 °c. The maximum collector current includes 10 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 1.9v @ 4v, 6a. The maximum collector emitter breakdown voltage of the product is 430 v. The product has -40°c ~ 175°c (tj) operating temperature range. It carries logic input type. Moreover, the product comes in [Package/ Case]. In addition, it is reach unaffected. Test condition included 300v, 1kohm, 5v. It is shipped in tape & reel (tr). Its typical moisture sensitivity level is 1 (unlimited). It has a long 53 weeks standard lead time. The product ecospark®, is a highly preferred choice for users. to-252aa is the supplier device package value. The maximum power of the product is 130 w. Moreover, it corresponds to isl9v2040, a base product number of the product. The product is designated with the ear99 code number

pdf icon
ISL9V2040D3S, ISL9V2040S3S, ISL9V2040P3, EcoSPARK 200mJ, 400V, N-Channel Ignition IGBT(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Mult Dev A/T 18/Aug/2021(PCN Assembly/Origin)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
pdf icon
Logo 17/Aug/2017(PCN Design/Specification)
pdf icon
Mult Devices 24/Oct/2017(PCN Packaging)
