Base Product Number:

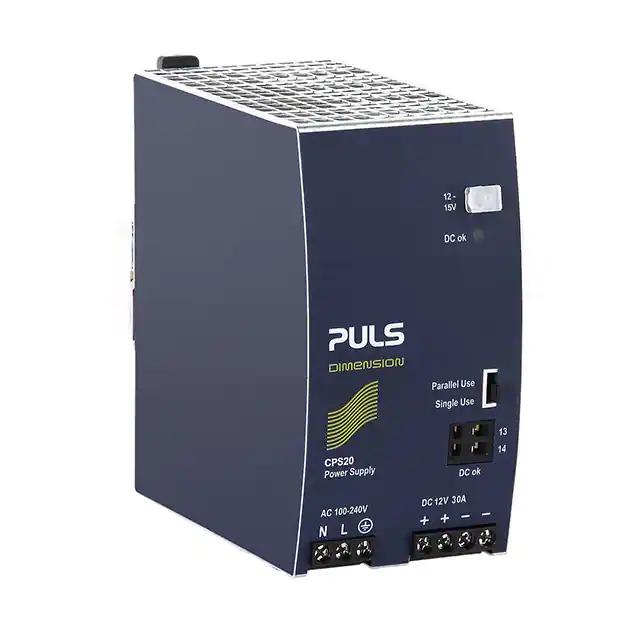

CPS20
HTSUS:
8504.40.9530
RoHS Status:
RoHS Compliant
Power (Watts):
360W
Current - Output (Max):
30A
Approval Agency:
ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL
Input Type:
AC
Applications:
Hazardous Locations, ITE (Commercial)
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
Voltage - Output 1:
12V
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
92.5%
Package:
Box
Minimum Load Required:
-
Size / Dimension:
5.00" L x 2.56" W x 4.88" H (127.0mm x 65.0mm x 124.0mm)
standardLeadTime:
26 Weeks
Voltage - Isolation:
3 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Adjustable Output, Load Sharing, PFC, Universal Input
Series:
DIMENSION C (405W)
Operating Temperature:
-25°C ~ 70°C (With Derating)
Standard Number:
Class I Div 2; 508; 60950-1; 61010-2-201
Number of Outputs:
1
ECCN:
EAR99
