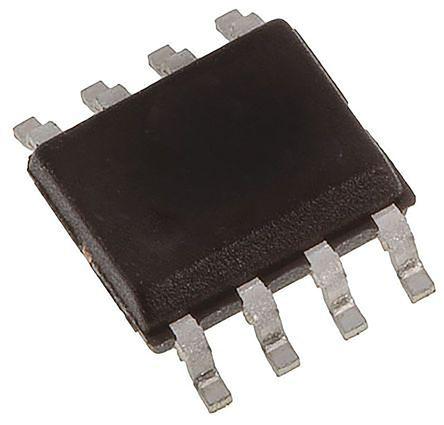

Intersil CA5260MZ

CA5260MZ Intersil
CA5260MZ
CA5260MZ
ET11437960
ET11437960
Instrumentation, OP Amps, Buffer Amps
Instrumentation, OP Amps, Buffer Amps
Intersil

Product Information

Typical Dual Supply Voltage:
±3 V, ±5 V
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Typical Slew Rate:
5V/µs
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Rail to Rail:
Rail to Rail Output
Height:
1.5mm
Typical Single Supply Voltage:
5 V
Width:
4mm
Length:
5mm
Package Type:
SOIC
Minimum Operating Temperature:
-55 °C
Typical Voltage Gain:
111 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
8
HTSUS:
0000.00.0000
Operating Temperature:
-55°C ~ 125°C
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Current - Input Bias:
5 pA
Voltage - Supply Span (Max):
16 V
Voltage - Supply Span (Min):
4.5 V
Output Type:
Rail-to-Rail
Current - Supply:
9mA (x2 Channels)
Current - Output / Channel:
45 mA
Package:
Bulk
Slew Rate:
5V/µs
Voltage - Input Offset:
2 mV
Number of Circuits:
2
Gain Bandwidth Product:
3 MHz
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Amplifier Type:
General Purpose
RoHs Compliant
Checking for live stock

This is manufactured by Intersil. The manufacturer part number is CA5260MZ. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 5mm. Whereas, the minimum operating temperature of the product is -55 °c. It has a maximum operating temperature of +125 °c. It is assigned with possible HTSUS value of 0000.00.0000. The product has -55°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. The typical current - input bias includes 5 pa. The maximum voltage supply span of the product is 16 v. While the minimum voltage supply is 4.5 v. Furthermore, it has arail-to-rail output. The current - supply of a bespoke product is 9ma (x2 channels). It carries 45 ma output or channel current. It is shipped in bulk. The 5v/µs is the slew rate of the product. The input offset voltage is 2 mv. It integrates 2 circuits. The gain bandwidth product is 3 mhz. 8-soic is the supplier device package value. It is a sort of a general purpose amplifier.

pdf icon
Dual SMT op-amp, 3MHz CA5260MZ(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
CA5260, CA5260A, 3MHz, BiMOS Microprocessor Operational Amplifiers with MOSFET Input/CMOS Output(Technical Reference)
