Output Signal Type:
Differential
Dimensions:
19.3 x 6.35 x 4.57mm
Mounting Type:
Through Hole
Input Signal Type:
Differential
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Multiplexer Architecture:
4:1
Height:
4.57mm
Typical Single Supply Voltage:
5 V, 9 V, 12 V, 15 V, 18 V
Width:
6.35mm
Length:
19.3mm

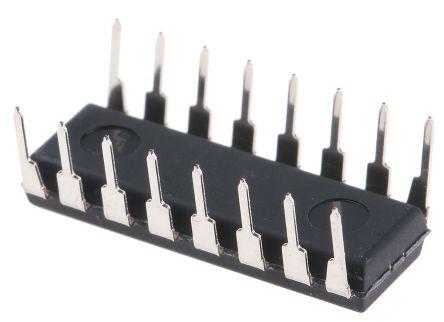

Package Type:
PDIP
Typical Dual Supply Voltage:
±3 V, ±5 V
Minimum Operating Temperature:
-55 °C
Configuration:
Dual 4:1
Maximum Operating Temperature:
+125 °C
Pin Count:
16
Switch Type:
Analogue Multiplexer
Channel-to-Channel Matching (ΔRon):
5Ohm
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TA)
Package / Case:
16-DIP (0.300", 7.62mm)
Switch Time (Ton, Toff) (Max):
-
Current - Leakage (IS(off)) (Max):
100nA
Voltage - Supply, Dual (V±):
-
-3db Bandwidth:
25MHz
Multiplexer/Demultiplexer Circuit:
4:1
Package:
Tube
Channel Capacitance (CS(off), CD(off)):
0.2pF, 18pF
Moisture Sensitivity Level (MSL):
Not Applicable
Voltage - Supply, Single (V+):
3V ~ 20V
standardLeadTime:
6 Weeks
Switch Circuit:
SPST - NO
Number of Circuits:
2
Mounting Type:
Through Hole
Series:
-
Crosstalk:
-40dB @ 10MHz
On-State Resistance (Max):
240Ohm
Supplier Device Package:
16-PDIP
Charge Injection:
-
ECCN:
EAR99
