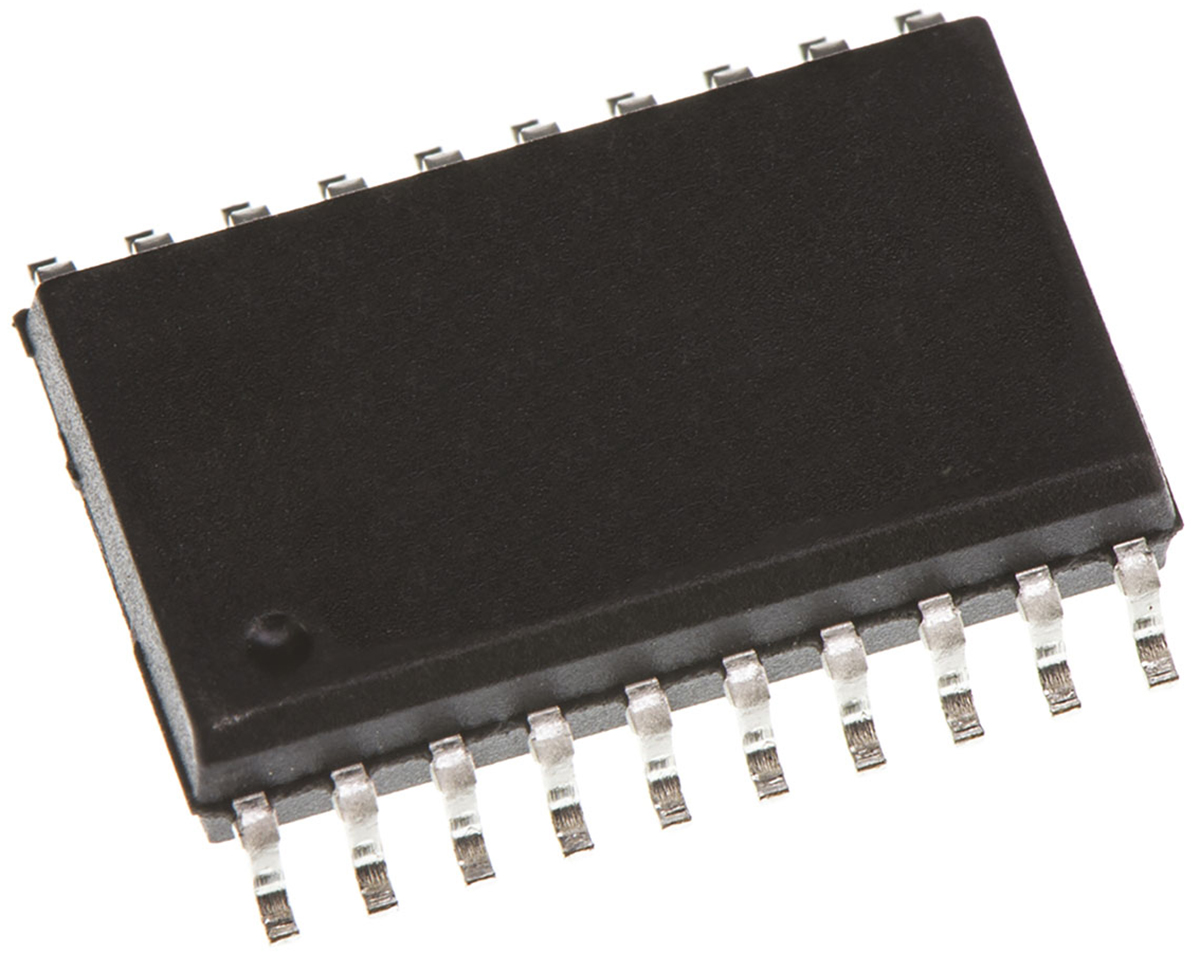

Texas Instruments TPIC6259DW 8bit-Bit Latch, Addressable D Type, Open Drain, 20-Pin SOIC

Enrgtech Part No: ET100265338
|
Manufacturer Part No:
TPIC6259DW
|
Manufacturer: Texas Instruments

TPIC6259DW Texas Instruments 8bit-Bit Latch, Addressable D Type, Open Drain, 20-Pin SOIC

(0)

Product Information

Width:

7.52mm

Height:

2.35mm

Length:

12.8mm

Polarity:

Inverting

Pin Count:

Set/Reset:

Yes

Dimensions:

12.8 x 7.52 x 2.35mm

Latch Mode:

Addressable

Output Type:

Open Drain

Package Type:

SOIC

Mounting Type:

Surface Mount

Number of Bits:

8bit

185 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 3.29

£ 16.45

£ 2.66

£ 66.50

100

£ 2.46

£ 246.00

Mfr Part No:

TPIC6259DW

Seller:

Texas Instruments

Origin:

Warranty:

Manufacturer

Data Code:

ET100265338

Order Today!

From: United Kingdom

Est Ship Date: 15 Jul, 2026

Est Fastest Delivery: 16 Jul, 2026

Quantity Quantity

This is 8bit-Bit Latch Addressable D Type Open Drain 20-Pin SOIC manufactured by Texas Instruments. The manufacturer part number is TPIC6259DW. Furthermore, the product is 7.52mm wide. In addition, the height is 2.35mm. Its accurate length is 12.8mm. The given dimensions of the product include 12.8 x 7.52 x 2.35mm. Furthermore, it has aopen drain output. The product is available in surface mount configuration. The product consists of 8bit bits. It has a maximum operating temperature of +125 °c. Whereas, the minimum operating temperature of the product is -40 °c.
