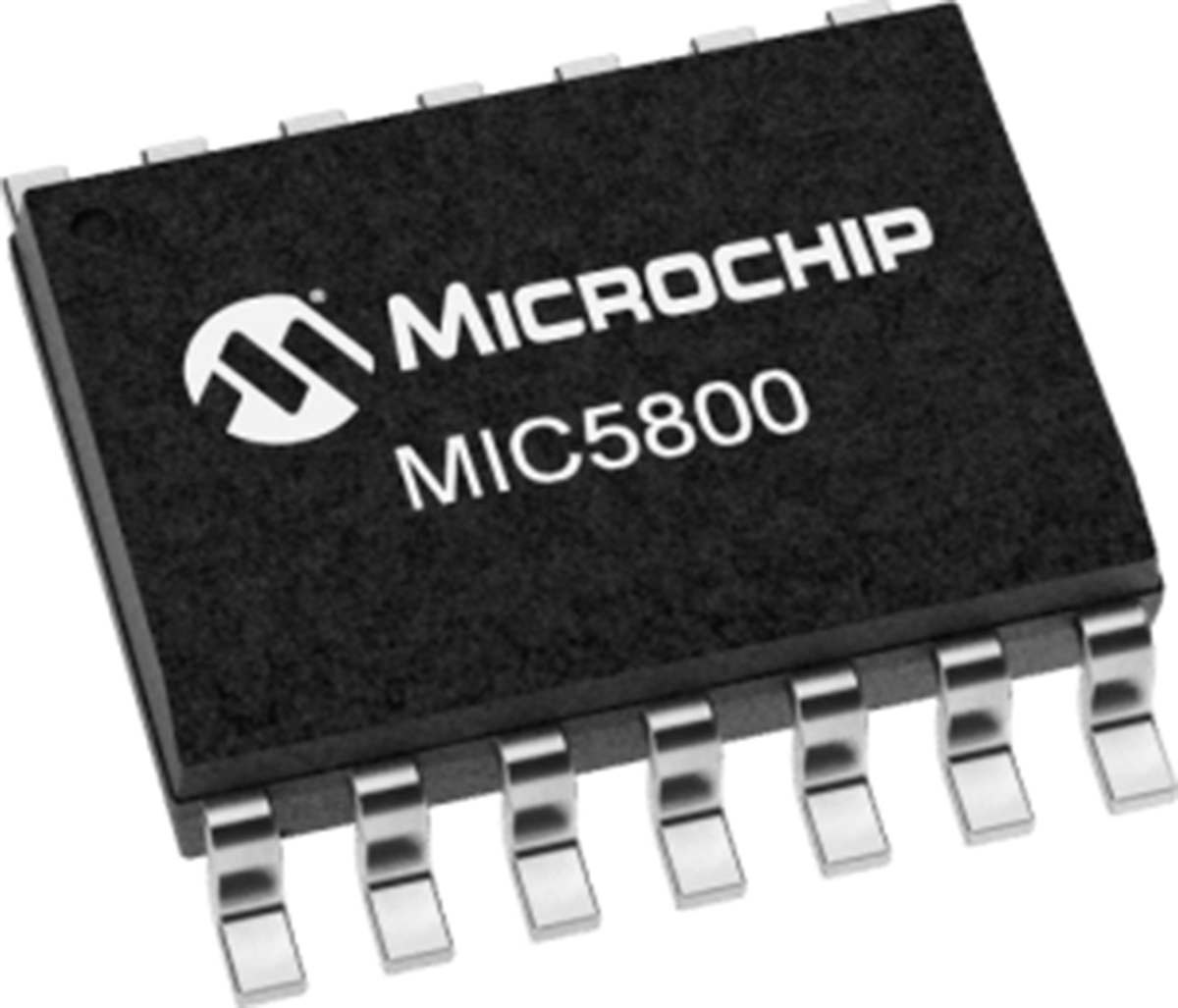

Microchip MIC5800YM Quad-Bit 4 Bit Latched Driver, Transparent D Type, Open Collector, 14-Pin SOIC

MIC5800YM Microchip Quad-Bit 4 Bit Latched Driver, Transparent D Type, Open Collector, 14-Pin SOIC
MIC5800YM
MIC5800YM Microchip Quad-Bit 4 Bit Latched Driver, Transparent D Type, Open Collector, 14-Pin SOIC
Microchip

Product Information

Polarity:
Non-Inverting
Set/Reset:
Yes
Number of Elements per Chip:
15
Dimensions:
8.6 x 3.89 x 1.63mm
Mounting Type:
Through Hole
Minimum Operating Supply Voltage:
-0.3 V
Number of Bits:
4
Number of Channels per Chip:
1
Latch Mode:
Transparent
Output Type:
Open Collector
Height:
1.63mm
Width:
3.89mm
Length:
8.6mm
Package Type:
SOIC
Logic Family:
CMOS
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
15.3 V
Maximum Operating Temperature:
+85 °C
Pin Count:
14
Latching Element:
D Type
RoHs Compliant
Checking for live stock

This is Quad-Bit 4 Bit Latched Driver Transparent D Type Open Collector 14-Pin SOIC manufactured by Microchip. The manufacturer part number is MIC5800YM. The given dimensions of the product include 8.6 x 3.89 x 1.63mm. The product is available in through hole configuration. The product consists of 4 bits. Furthermore, it has aopen collector output. In addition, the height is 1.63mm. Furthermore, the product is 3.89mm wide. Its accurate length is 8.6mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c.
