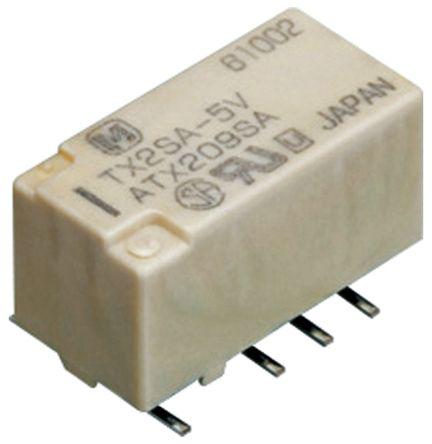

DPDT Surface Mount Latching Relay 7.5 A, 1.5V dc For Use In Temperature Control Applications

TX2SA-LT-1-5V-TH DPDT Surface Mount Latching Relay 7.5 A, 1.5V dc For Use In Temperature Control Applications
Panasonic

Product Information

Dimensions:
15 x 7.4 x 8.2mm
Electrical Life:
5 x 10^5 operations
Application:
Temperature Control
Coil Resistance:
16 Ω
Life:
100000000 (Mechanical) operations, 5 x 10⁵ (Electrical) operations
Coil Power:
140mW
Maximum Switching Voltage DC:
220V
Maximum Switching Power DC:
60 W
Isolation Coil To Contact:
2kV rms
Maximum Operating Temperature:
+85°C
Terminal Type:
PCB Pin
Coil Voltage:
1.5V dc
Operating Temperature Range:
-40 → +85°C
Switching Current:
7.5A
Contact Configuration:
DPDT
Depth:
7.4mm
Features:
High Contact Capacity, Surge Resistance
Mounting Type:
Surface Mount
Length:
15mm
Height:
8.2mm
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
60 VA
Contact Material:
Ag Plated, Au Plated
RoHs Compliant
Checking for live stock

This is DPDT Surface Mount Latching Relay 7.5 A 1.5V dc For Use In Temperature Control Applications manufactured by Panasonic. The manufacturer part number is TX2SA-LT-1.5V-TH. The given dimensions of the product include 15 x 7.4 x 8.2mm. The product offers long-lasting services of 5 x 10^5 operations. It holds up to 16 ω coil resistance. Robust coil power of 140mw. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. The coil voltage of the product is 1.5v dc. The product comes in 7.4mm depth. The splendid features of the product include high contact capacity, surge resistance. The product is available in surface mount configuration. Its accurate length is 15mm. In addition, the height is 8.2mm. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy ag plated, au plated materials.

pdf icon
TX Relays Datasheet(Technical Reference)
pdf icon
TX Relays Data Sheet(Technical Reference)
